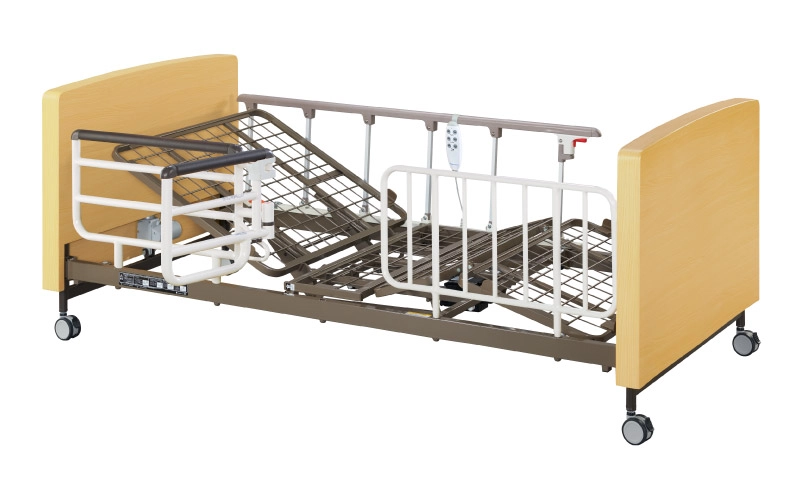

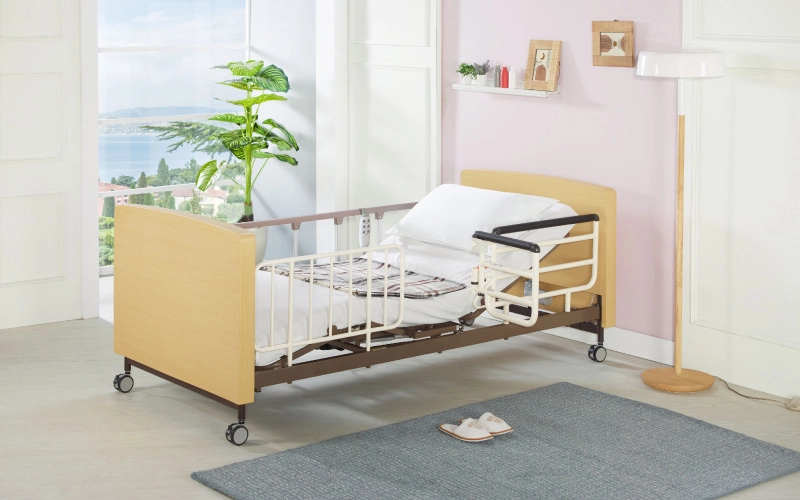

Assembly Electric Home Care Bed (3 Motors)
Model：EN-2M
Description：
-
Combination Type
The bed can be assembled and disassembled according to your needs, which makes it easy to store and transport, saving storage space.
Wooden Head and Foot Board
Durable, light weight and aesthetic, suitable for home bed type use.
Mattress Stoppers
Stoppers around the mattress platform to prevent mattress slip.
Safe and Firm Construction - Powder Coating
The electric bed's frame is made of steel with powder coating, sturdy and durable structural design.
Safe Working Load
The bed frame has been professionally tested and has a maximum safe load of 173.5 kg, ensuring structural stability and user safety.
Dust-Proof Lockable Caster
Effectively prevent foreign objects from being rolled in when moving the bed to improve the efficiency and smoothness of movement.
Mattress (Optional)
L 1980 × W 890 × H 100 mm
Choose from a standard or antibacterial care mattress, both made with high-density flame-retardant foam. Available in different surface designs (e.g., corrugated, flat, wrinkle) and certified non-toxic (RoHS) and flame-retardant (BS-7177 & CA-117).
-
Auto-chair
Provides one-touch back and knee linkage function to quickly adjust the reclining position to a comfortable position.The adjustable angle between the backboard and the bed surface is 0 ~ 75°, and the angle between the thigh panel and the bed surface is 0 ~ 15°.
Adjustable bed height depending on the brake wheel size: 4" Dust-Proof Lockable Caster: 295 ~ 695 mm
Bed Elevation
Trendelenburg & Reverse Trendelenburg
Adjustable Trendelenburg / Reverse Trendelenburg tilt angles are ± 0~11°.
Chair Position
The "Auto-Chair" button allows users to adjust the lift mechanism to the most comfortable sitting position according to their personal needs. -
Allows medical staff to easily adjust the bed's functions, setting it to a comfortable position that meets both patient and care needs.
Remote Controller
- Row 1 ▲▼Auto-chair
- Row 2 ▲▼Bed Elevation
- Row 3 ▲▼Trend./Rev. Trend.
-
3/4 Length Siderail
It 3/4 lengh folding down siderail can be placed up or down according to caregivers needs.
Rotary Armrest Siderail
With non-slip cover could spin out and grab firmly to support the patient to stand up or leave the bed.
Plug-In Siderail
It can be installed on the both sides of bed or store at the foot end.
-
Top View
Side View
Foot-end View
Overall bed length 2140mm Overall bed width 1066mm (siderails up/down) Overall mattress base length 1900mm Overall mattress base width 910mm Overall bed height 295 ~ 695 mm (4") ±20mm tolerance in all dimensions｜±30mm in siderail width｜+5° -0° tolerance in angle degree
Actuator
Equipped with 3 motors, the drive voltage is DC 24V, providing stable and efficient driving performance.
Volts & Frequency
Supports AC100 - 240V and 50/60Hz, making it compatible with various power environments for flexible and convenient operation.
Actuator/Control Box
The electronic control system has an IP54 waterproof rating, effectively resisting moisture and dust to ensure long-term, stable operation.
-
Features
Combination Type
The bed can be assembled and disassembled according to your needs, which makes it easy to store and transport, saving storage space.Wooden Head and Foot Board
Durable, light weight and aesthetic, suitable for home bed type use.Mattress Stoppers
Stoppers around the mattress platform to prevent mattress slip.Safe and Firm Construction - Powder Coating
The electric bed's frame is made of steel with powder coating, sturdy and durable structural design.Safe Working Load
The bed frame has been professionally tested and has a maximum safe load of 173.5 kg, ensuring structural stability and user safety.Dust-Proof Lockable Caster
Effectively prevent foreign objects from being rolled in when moving the bed to improve the efficiency and smoothness of movement.Mattress (Optional)
L 1980 × W 890 × H 100 mm
Choose from a standard or antibacterial care mattress, both made with high-density flame-retardant foam. Available in different surface designs (e.g., corrugated, flat, wrinkle) and certified non-toxic (RoHS) and flame-retardant (BS-7177 & CA-117). -
Functions
Auto-chair
Provides one-touch back and knee linkage function to quickly adjust the reclining position to a comfortable position.The adjustable angle between the backboard and the bed surface is 0 ~ 75°, and the angle between the thigh panel and the bed surface is 0 ~ 15°.
Adjustable bed height depending on the brake wheel size: 4" Dust-Proof Lockable Caster: 295 ~ 695 mm
Bed ElevationTrendelenburg & Reverse Trendelenburg
Adjustable Trendelenburg / Reverse Trendelenburg tilt angles are ± 0~11°.Chair Position
The "Auto-Chair" button allows users to adjust the lift mechanism to the most comfortable sitting position according to their personal needs. -
ControlAllows medical staff to easily adjust the bed's functions, setting it to a comfortable position that meets both patient and care needs.
Remote Controller
- Row 1 ▲▼Auto-chair
- Row 2 ▲▼Bed Elevation
- Row 3 ▲▼Trend./Rev. Trend.
-
Side Rails
3/4 Length Siderail
It 3/4 lengh folding down siderail can be placed up or down according to caregivers needs.Rotary Armrest Siderail
With non-slip cover could spin out and grab firmly to support the patient to stand up or leave the bed.Plug-In Siderail
It can be installed on the both sides of bed or store at the foot end. -
Dimensions
Top View
Side View
Foot-end View
Overall bed length 2140mm Overall bed width 1066mm (siderails up/down) Overall mattress base length 1900mm Overall mattress base width 910mm Overall bed height 295 ~ 695 mm (4") ±20mm tolerance in all dimensions｜±30mm in siderail width｜+5° -0° tolerance in angle degree
Actuator
Equipped with 3 motors, the drive voltage is DC 24V, providing stable and efficient driving performance.Volts & Frequency
Supports AC100 - 240V and 50/60Hz, making it compatible with various power environments for flexible and convenient operation.Actuator/Control Box
The electronic control system has an IP54 waterproof rating, effectively resisting moisture and dust to ensure long-term, stable operation.
Some features or accessories are optional. For more information, please contact our sales team.
