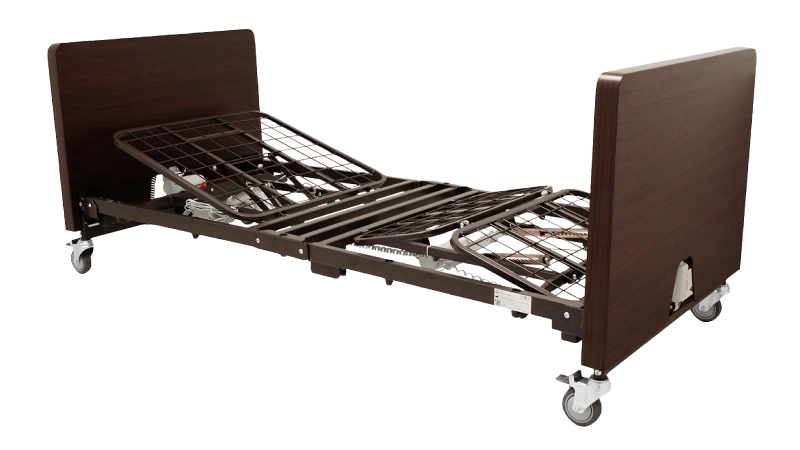

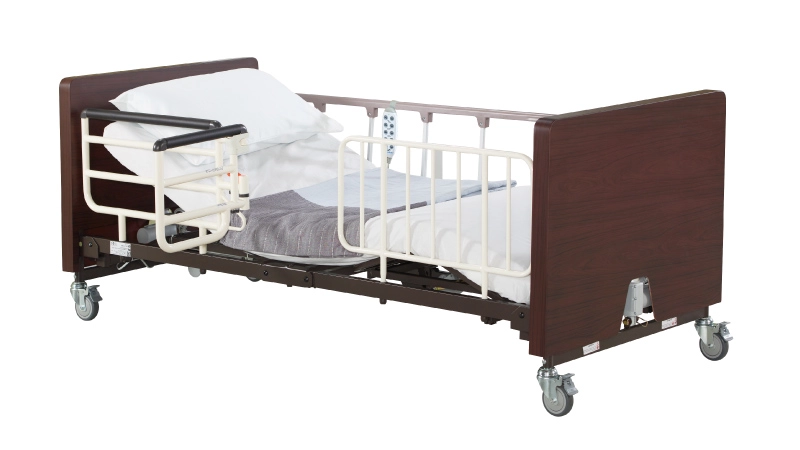

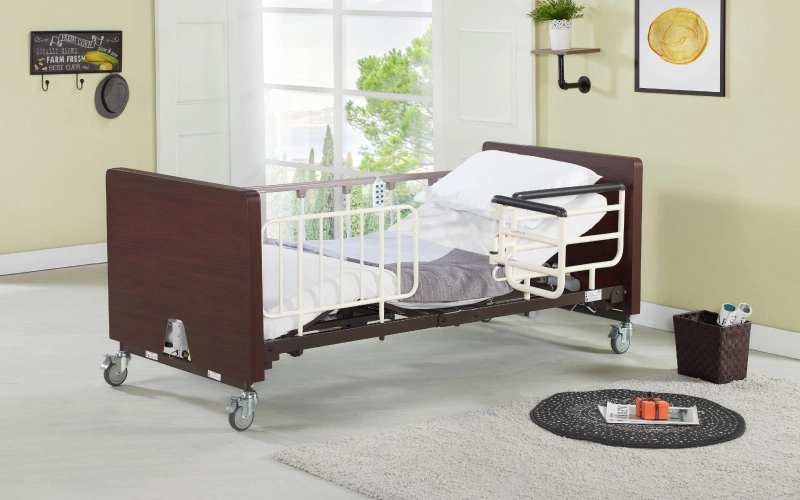

Foldable Electric Home Care Bed (4 Motors)
Model：EN-3M
Description：
-

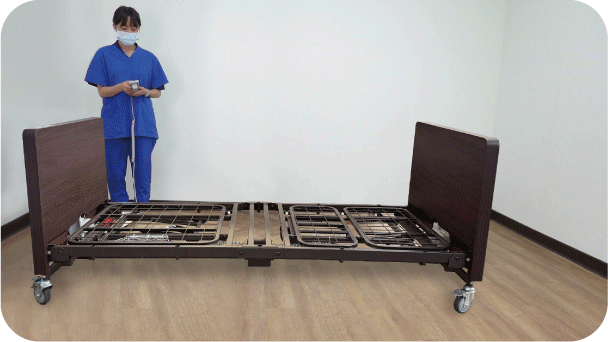

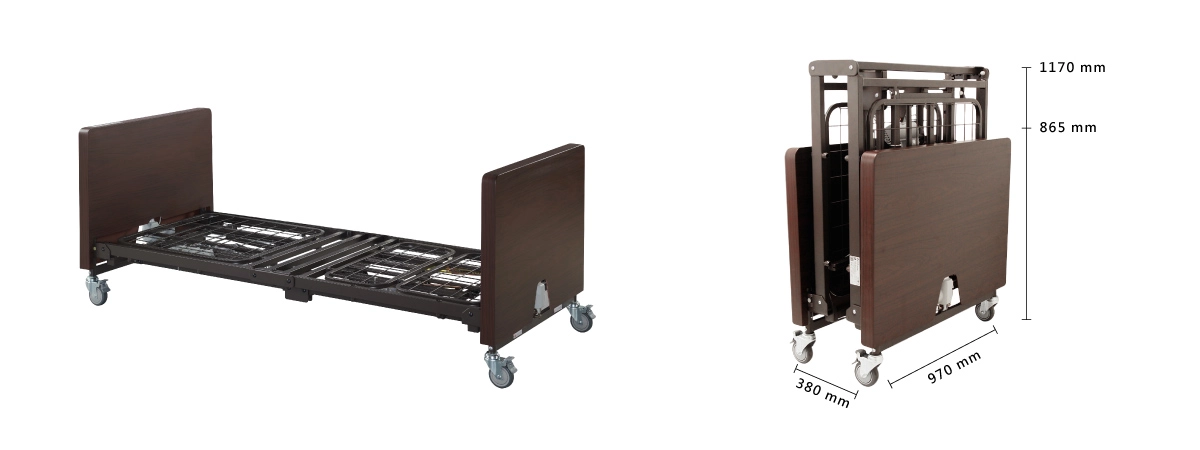

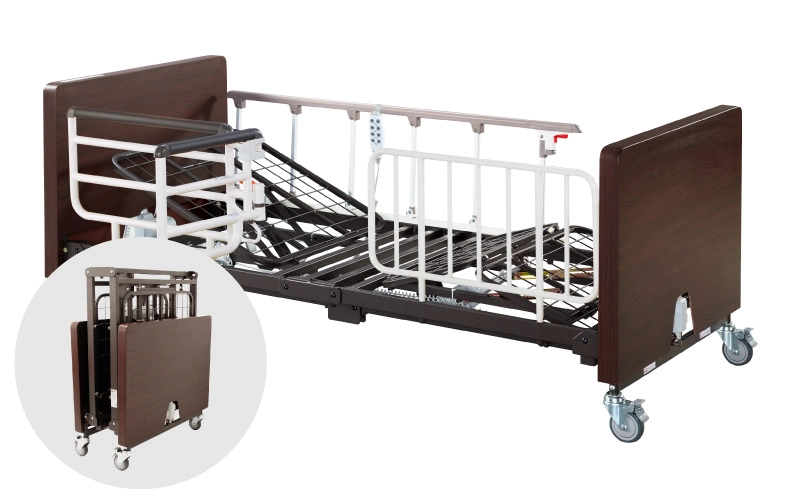

Electric Fold and Extend
The bed body can be folded according to the needs, easy to store and transport, saving storage space.

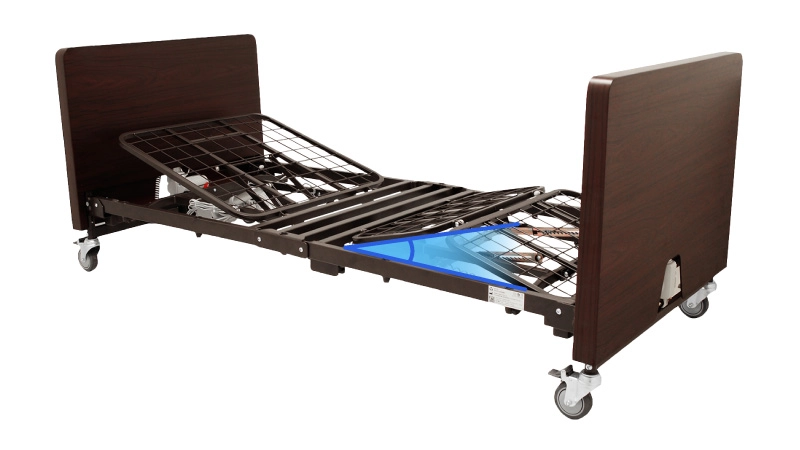

Wooden Head and Foot Board
Durable, light weight and aesthetic, suitable for home bed type use.

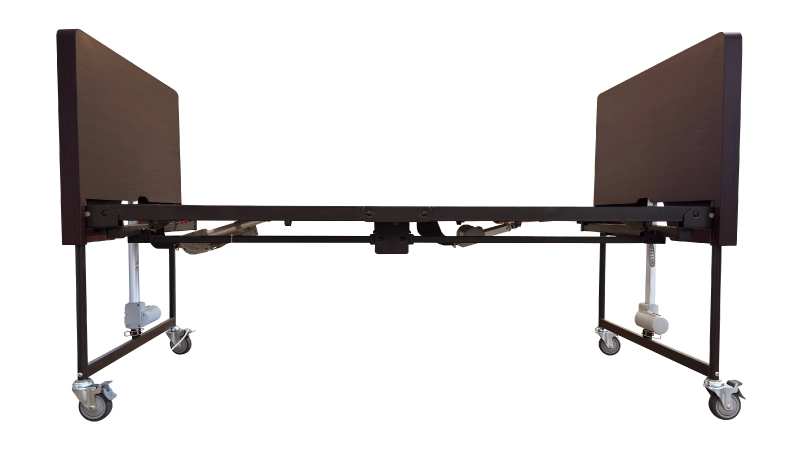

Safe and Firm Construction - Powder Coating
The electric bed's frame is made of steel with powder coating, sturdy and durable structural design.

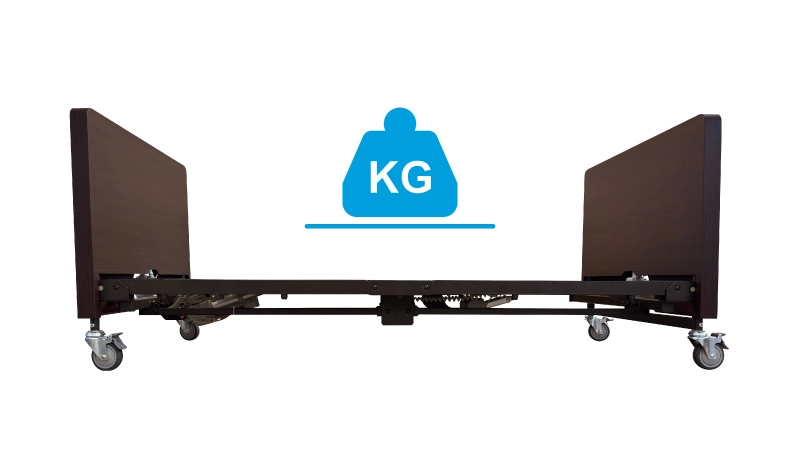

Safe Working Load
The bed frame has been professionally tested and has a maximum safe load of 170 kg, ensuring structural stability and user safety.

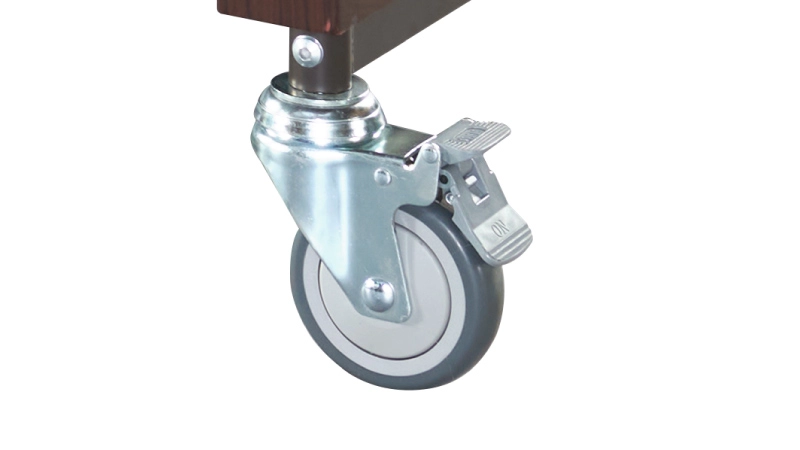

Normal Lockable Caster
An ON/OFF two-stage brake can lock or unlock the wheels, making it easy to adjust the bed's position and prevent it from sliding when stationary.
Mattress (Optional)
L 1980 × W 820 × H 150mm
Choose from a standard or antibacterial care mattress, both made with high-density flame-retardant foam. Available in different surface designs (e.g., corrugated, flat, wrinkle) and certified non-toxic (RoHS) and flame-retardant (BS-7177 & CA-117).
-

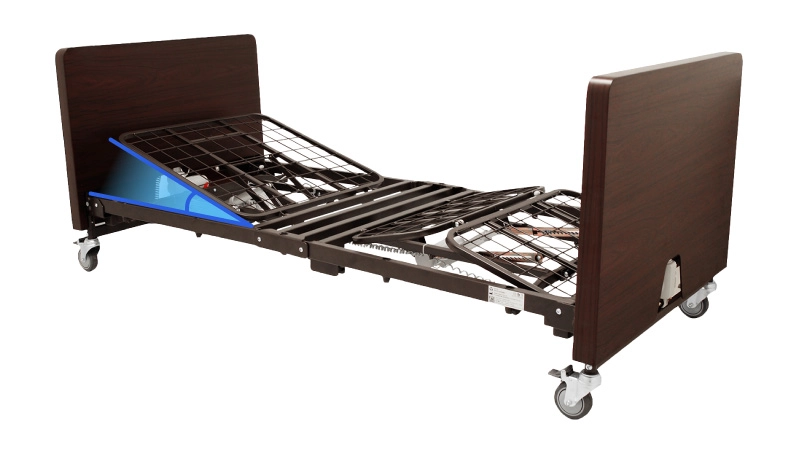

Adjustable angle between the backboard and the bed surface is 0 ~ 70°.

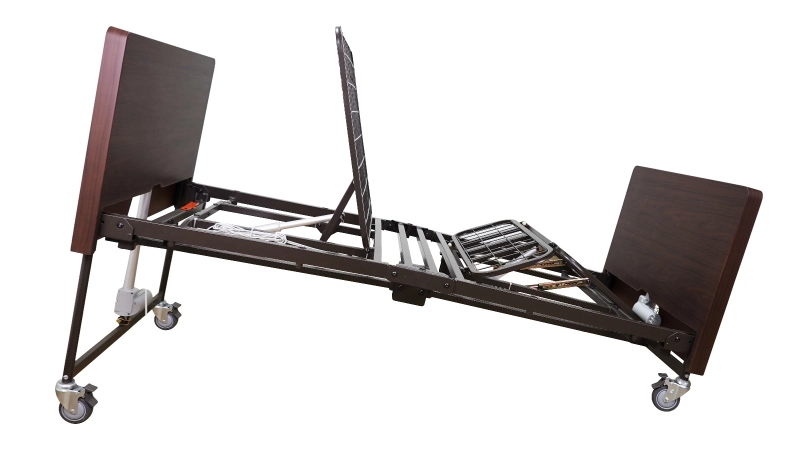

Head Elevation
Knee Elevation
The angle between the adjustable thigh panel and the bed surface is 0 ~ 28°.

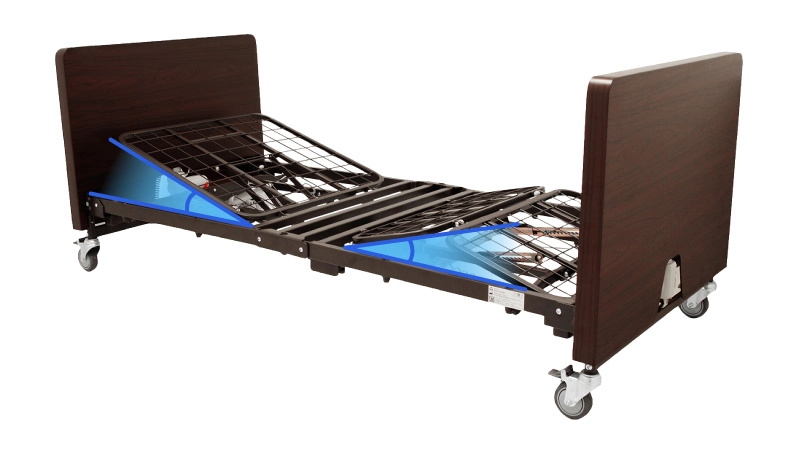

Auto-chair
Provides one-touch back and knee linkage function to quickly adjust the reclining position to a comfortable position.The adjustable angle between the backboard and the bed surface is 0 ~ 70°, and the angle between the thigh panel and the bed surface is 0 ~ 28°.

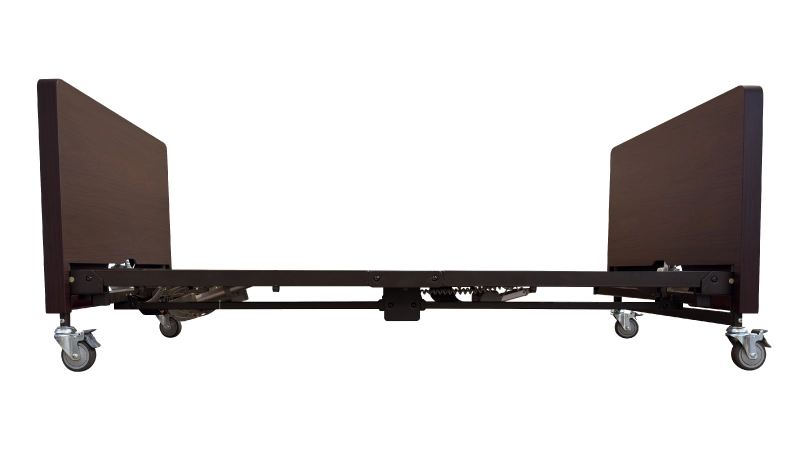

Adjustable bed height depending on the brake wheel size: 4" Normal Lockable Castor: 310 ~ 710 mm.
Bed Elevation

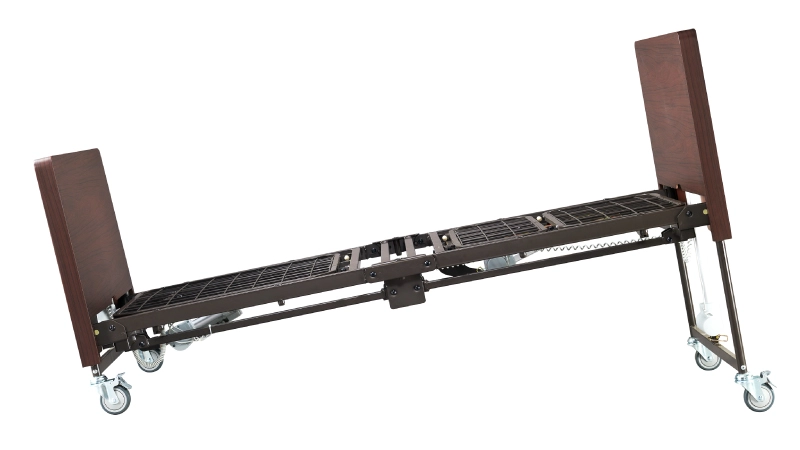

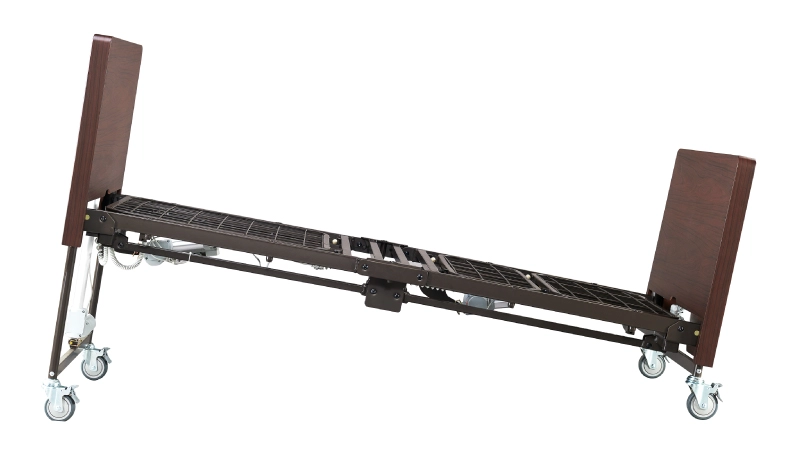

Trendelenburg / Reverse Trendelenburg
Adjustable Trendelenburg / Reverse Trendelenburg tilt angles are ± 0~11°.
Chair Position
The "Auto-Chair" button allows users to adjust the lift mechanism to the most comfortable sitting position according to their personal needs. -
Allows medical staff to easily adjust the bed's functions, setting it to a comfortable position that meets both patient and care needs.

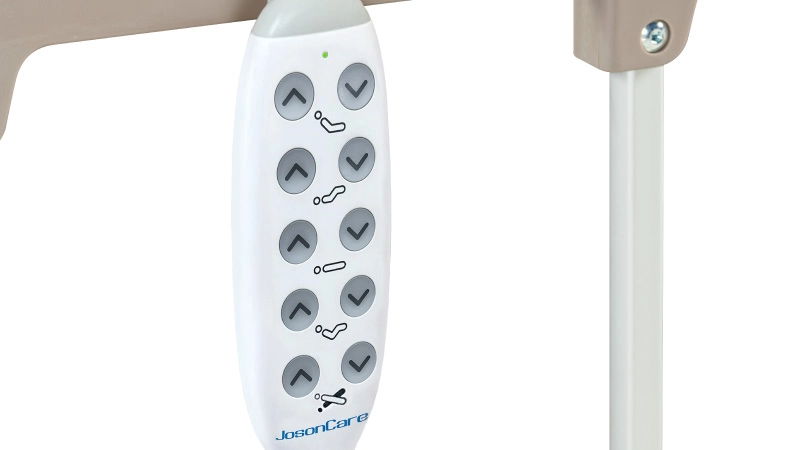

Remote Controller
- Row 1 ▲▼Head Elevation
- Row 2 ▲▼Knee Elevation
- Row 3 ▲▼Bed Elevation
- Row 4 ▲▼Auto-chair
- Row 5 ▲▼Trend./Rev. Trend.
-

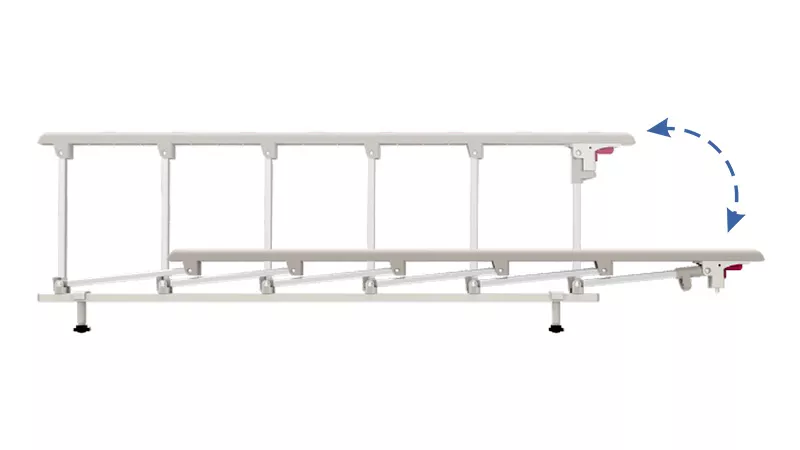

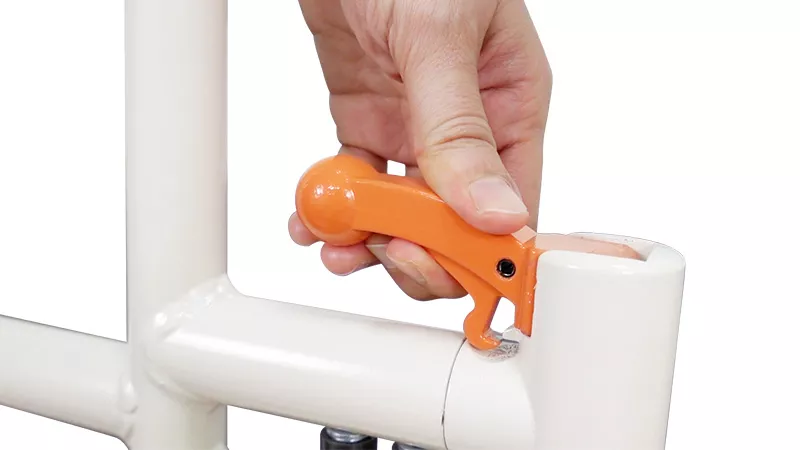

3/4 Length Siderail
It 3/4 lengh folding down siderail can be placed up or down according to caregivers needs.

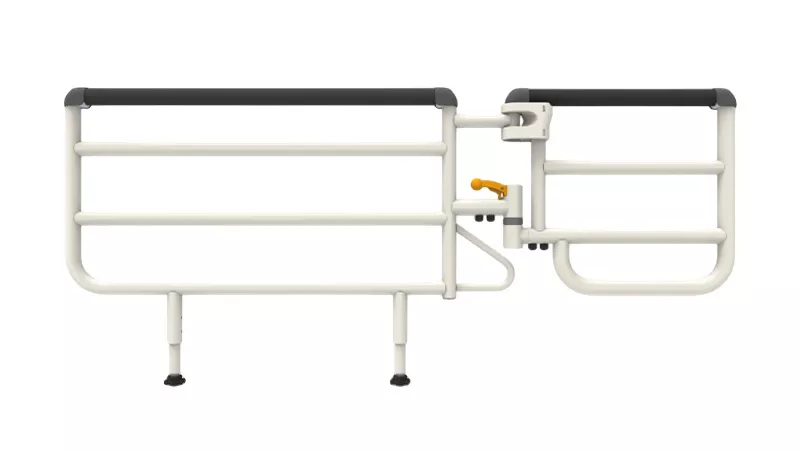

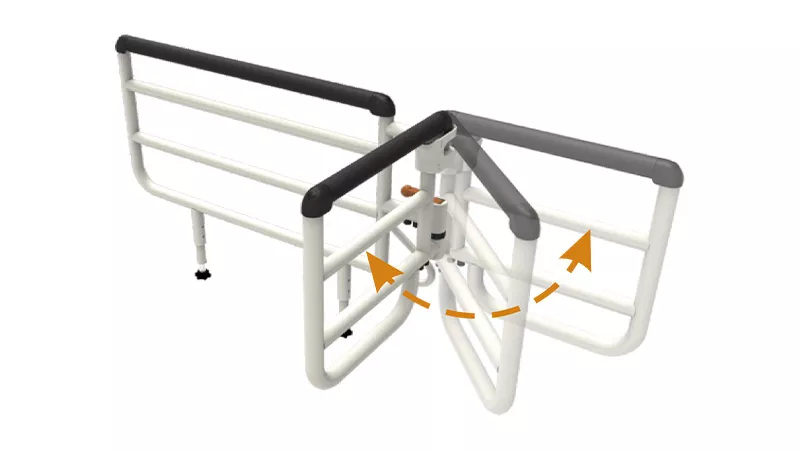

Rotary Armrest Siderail
With non-slip cover could spin out and grab firmly to support the patient to stand up or leave the bed.

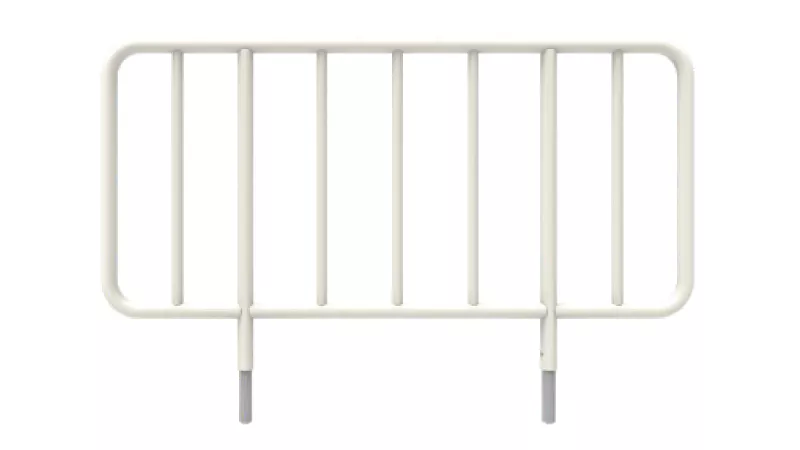

Plug-In Siderail
It can be installed on the both sides of bed or store at the foot end.
-

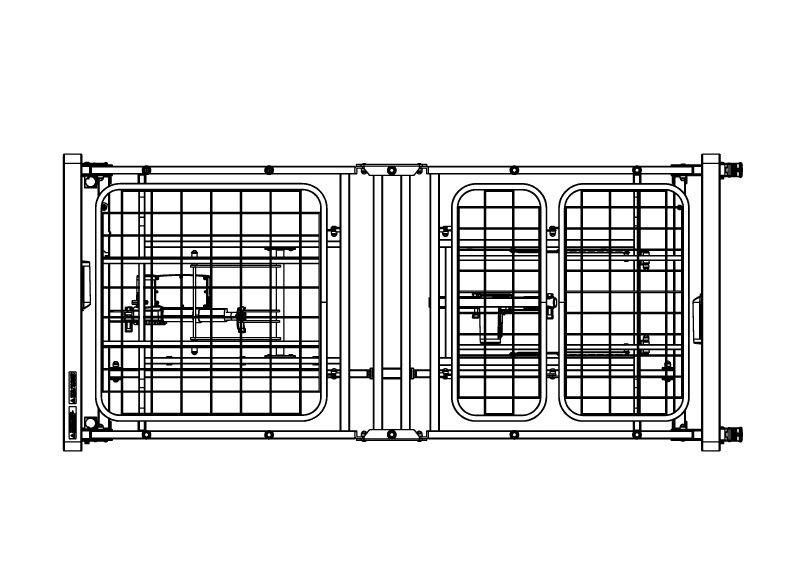

Top View

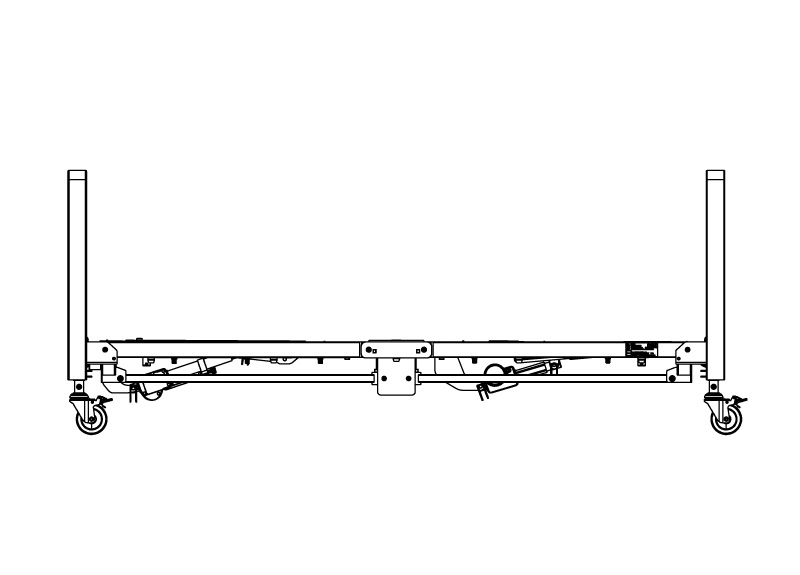

Side View

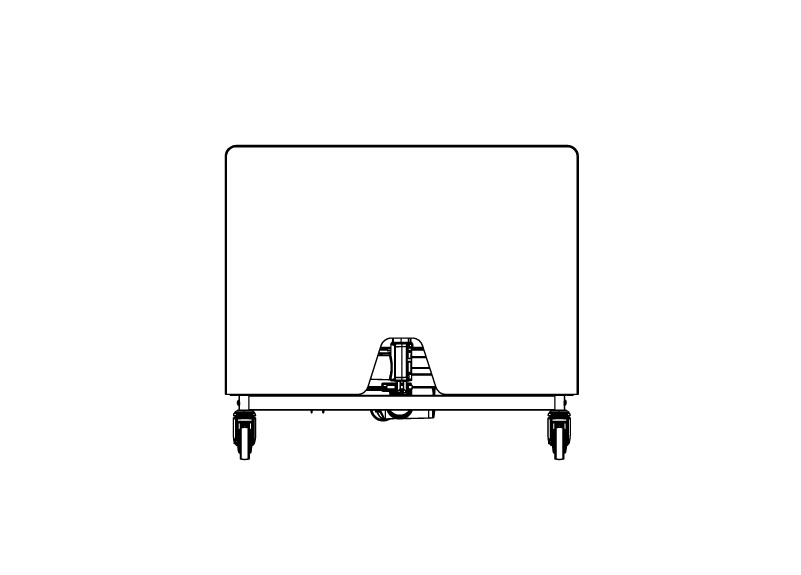

Foot-end View
Overall bed length 2140mm Overall bed width 970mm (siderails up/down) Overall mattress base length 1935mm Overall mattress base width 775mm Overall bed height 310 ~ 710 mm (4") ±20mm tolerance in all dimensions｜±30mm in siderail width｜+5° -0° tolerance in angle degree
Actuator
Equipped with 4 motors, the drive voltage is DC 24V, providing stable and efficient driving performance.
Volts & Frequency
Supports AC100 - 240V and 50/60Hz, making it compatible with various power environments for flexible and convenient operation.
Actuator/Control Box
The electronic control system has an IP54 waterproof rating, effectively resisting moisture and dust to ensure long-term, stable operation.
-
Features
Electric Fold and Extend
The bed body can be folded according to the needs, easy to store and transport, saving storage space.Wooden Head and Foot Board
Durable, light weight and aesthetic, suitable for home bed type use.Safe and Firm Construction - Powder Coating
The electric bed's frame is made of steel with powder coating, sturdy and durable structural design.Safe Working Load
The bed frame has been professionally tested and has a maximum safe load of 170 kg, ensuring structural stability and user safety.Normal Lockable Caster
An ON/OFF two-stage brake can lock or unlock the wheels, making it easy to adjust the bed's position and prevent it from sliding when stationary.Mattress (Optional)
L 1980 × W 820 × H 150mm
Choose from a standard or antibacterial care mattress, both made with high-density flame-retardant foam. Available in different surface designs (e.g., corrugated, flat, wrinkle) and certified non-toxic (RoHS) and flame-retardant (BS-7177 & CA-117). -
Functions
Adjustable angle between the backboard and the bed surface is 0 ~ 70°.
Head ElevationKnee Elevation
The angle between the adjustable thigh panel and the bed surface is 0 ~ 28°.Auto-chair
Provides one-touch back and knee linkage function to quickly adjust the reclining position to a comfortable position.The adjustable angle between the backboard and the bed surface is 0 ~ 70°, and the angle between the thigh panel and the bed surface is 0 ~ 28°.
Adjustable bed height depending on the brake wheel size: 4" Normal Lockable Castor: 310 ~ 710 mm.
Bed ElevationTrendelenburg / Reverse Trendelenburg
Adjustable Trendelenburg / Reverse Trendelenburg tilt angles are ± 0~11°.Chair Position
The "Auto-Chair" button allows users to adjust the lift mechanism to the most comfortable sitting position according to their personal needs. -
ControlAllows medical staff to easily adjust the bed's functions, setting it to a comfortable position that meets both patient and care needs.
Remote Controller
- Row 1 ▲▼Head Elevation
- Row 2 ▲▼Knee Elevation
- Row 3 ▲▼Bed Elevation
- Row 4 ▲▼Auto-chair
- Row 5 ▲▼Trend./Rev. Trend.
-
Side Rails
3/4 Length Siderail
It 3/4 lengh folding down siderail can be placed up or down according to caregivers needs.Rotary Armrest Siderail
With non-slip cover could spin out and grab firmly to support the patient to stand up or leave the bed.Plug-In Siderail
It can be installed on the both sides of bed or store at the foot end. -
Dimensions
Top View
Side View
Foot-end View
Overall bed length 2140mm Overall bed width 970mm (siderails up/down) Overall mattress base length 1935mm Overall mattress base width 775mm Overall bed height 310 ~ 710 mm (4") ±20mm tolerance in all dimensions｜±30mm in siderail width｜+5° -0° tolerance in angle degree
Actuator
Equipped with 4 motors, the drive voltage is DC 24V, providing stable and efficient driving performance.Volts & Frequency
Supports AC100 - 240V and 50/60Hz, making it compatible with various power environments for flexible and convenient operation.Actuator/Control Box
The electronic control system has an IP54 waterproof rating, effectively resisting moisture and dust to ensure long-term, stable operation.
Some features or accessories are optional. For more information, please contact our sales team.
