Electric Pediatric Bed (3 Motors)
Model：JC-012
Description：
-
Safety Siderail Handle
Safety Handles are set on both sides of the guardrail, and the safety protection device is configured so that the guardrail can only be operated by holding the left and right handles at the same time.
I.V. Pole Holes
The bed frame features IV pole sockets, allowing for flexible, multi-angle installation.
Restraint Belt Openings
The bed base is equipped with restraint belt openings, allowing caregivers to securely fasten restraints when necessary to enhance patient safety.
Safe Working Load
The bed frame has been professionally tested and has a maximum safe load of 170 kg, ensuring structural stability and user safety.
Bumpers
Avoid the damage caused when moving bed.
Mattress Stoppers
Stoppers around the mattress platform to prevent mattress slip.
Bed Frame
The bed structure skeleton is made of #SS304 powder coated, the structure is designed to be strong and durable.
Backup Battery
Provide bed electricity to controll when power failure or remove the plug.
Dust-Proof Central Braking Module
Single operate by pedal lever to the central braking module.
Dust-Proof Lockable Caster (Optional)
Prevent objects from outside to make the movement more safely.

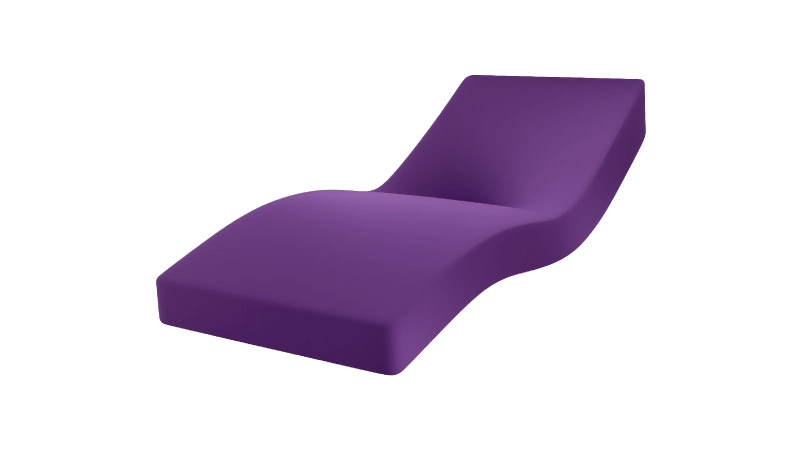

Mattress (Optional)
L 1850 × W 830 × H 100 mm
An optional specialized mattress is available to provide superior support and breathability, which helps alleviate discomfort from prolonged bed rest.
-
Head Elevation
Adjustable angle between the backboard and the bed surface is 0 ~ 80°.
Knee Elevation
The angle between the adjustable thigh panel and the bed surface is 0 ~ 40°.
Bed Elevation
Adjustable bed height depending on the brake wheel size: 5" Dust-Proof Lockable Caster: 650 ~ 850 mm -
Allows medical staff to easily adjust the bed's functions, setting it to a comfortable position that meets both patient and care needs.
Remote Controller
- Row 1 ▲▼Head Elevation
- Row 2 ▲▼Knee Elevation
- Row 3 ▲▼Bed Elevation
- Row 4 ▲▼Auto-chair
Attendant Control Panel
The control panel provides medical staff with controls for bed height, back and knee tilt angle, guardrail button lock/unlock, and CPR quick release button.
-
Top View
Side View
Foot-end View
Overall bed length 2050mm Overall bed width 1000mm (siderails up/down) Overall mattress base length 1870mm Overall mattress base width 845mm Overall bed height 650 ~ 850mm (5") ±20mm tolerance in all dimensions｜±30mm in siderail width｜+5° -0° tolerance in angle degree
Actuator
Equipped with 3 motors, the drive voltage is DC 24V, providing stable and efficient driving performance.
Volts & Frequency
Supports AC 100-240V and 50/60Hz, making it compatible with various power environments for flexible and convenient operation.
Actuator/Control Box
The electronic control system has an IP66 waterproof rating, effectively resisting moisture and dust to ensure long-term, stable operation.
-
Features
Safety Siderail Handle
Safety Handles are set on both sides of the guardrail, and the safety protection device is configured so that the guardrail can only be operated by holding the left and right handles at the same time.I.V. Pole Holes
The bed frame features IV pole sockets, allowing for flexible, multi-angle installation.Restraint Belt Openings
The bed base is equipped with restraint belt openings, allowing caregivers to securely fasten restraints when necessary to enhance patient safety.Safe Working Load
The bed frame has been professionally tested and has a maximum safe load of 170 kg, ensuring structural stability and user safety.Bumpers
Avoid the damage caused when moving bed.Mattress Stoppers
Stoppers around the mattress platform to prevent mattress slip.Bed Frame
The bed structure skeleton is made of #SS304 powder coated, the structure is designed to be strong and durable.Backup Battery
Provide bed electricity to controll when power failure or remove the plug.Dust-Proof Central Braking Module
Single operate by pedal lever to the central braking module.Dust-Proof Lockable Caster (Optional)
Prevent objects from outside to make the movement more safely.Mattress (Optional)
L 1850 × W 830 × H 100 mm
An optional specialized mattress is available to provide superior support and breathability, which helps alleviate discomfort from prolonged bed rest. -
Functions
Head Elevation
Adjustable angle between the backboard and the bed surface is 0 ~ 80°.Knee Elevation
The angle between the adjustable thigh panel and the bed surface is 0 ~ 40°.Bed Elevation
Adjustable bed height depending on the brake wheel size: 5" Dust-Proof Lockable Caster: 650 ~ 850 mm -
ControlAllows medical staff to easily adjust the bed's functions, setting it to a comfortable position that meets both patient and care needs.
Remote Controller
- Row 1 ▲▼Head Elevation
- Row 2 ▲▼Knee Elevation
- Row 3 ▲▼Bed Elevation
- Row 4 ▲▼Auto-chair
Attendant Control Panel
The control panel provides medical staff with controls for bed height, back and knee tilt angle, guardrail button lock/unlock, and CPR quick release button. -
Dimensions
Top View
Side View
Foot-end View
Overall bed length 2050mm Overall bed width 1000mm (siderails up/down) Overall mattress base length 1870mm Overall mattress base width 845mm Overall bed height 650 ~ 850mm (5") ±20mm tolerance in all dimensions｜±30mm in siderail width｜+5° -0° tolerance in angle degree
Actuator
Equipped with 3 motors, the drive voltage is DC 24V, providing stable and efficient driving performance.Volts & Frequency
Supports AC 100-240V and 50/60Hz, making it compatible with various power environments for flexible and convenient operation.Actuator/Control Box
The electronic control system has an IP66 waterproof rating, effectively resisting moisture and dust to ensure long-term, stable operation.
Some features or accessories are optional. For more information, please contact our sales team.
