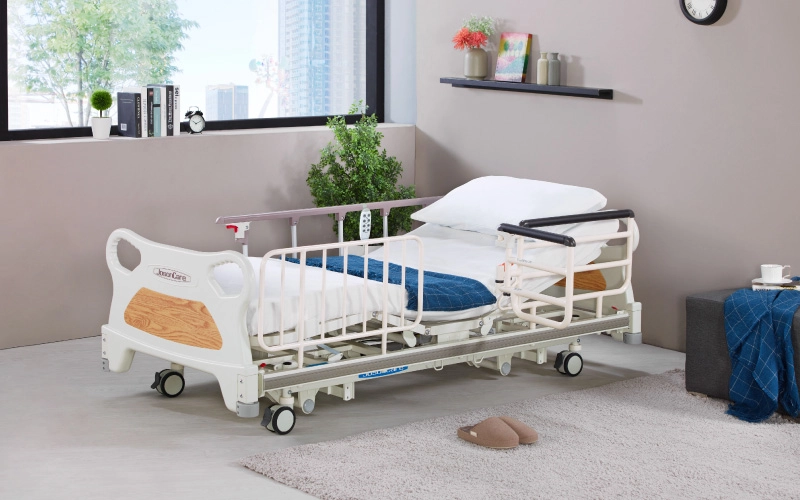

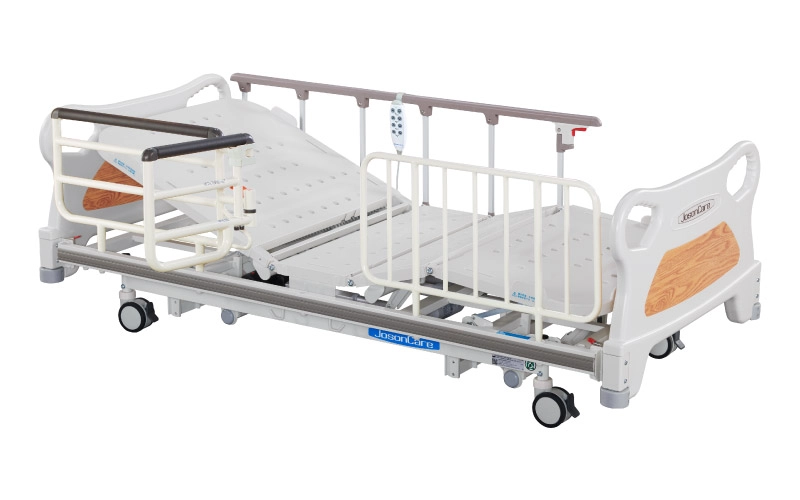

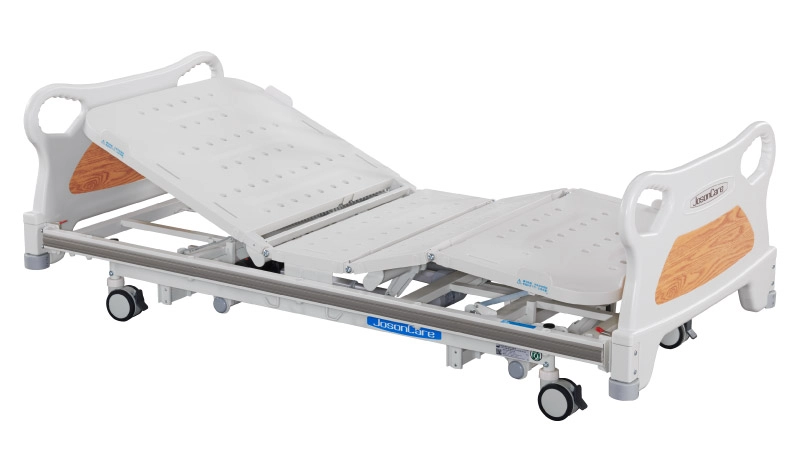

Electric Nursing Bed (3 Motors/2130mm)
Model：ES-02JH
Description：
- Built for hospitals, this bed integrates multiple functions and a robust structure to boost care efficiency and quality.
- Allows precise adjustment of head, knee, bed elevation and auto-chair.
- Features a sturdy powder-coated steel frame and an ABS plastic bed base for reliable long-term use.
- The side rails can be flexibly adjusted and customized to meet various care needs.
- Safety Certified: Meets IEC 60601-1-2 (EMC) and IEC 60601-2-52 standards.
-

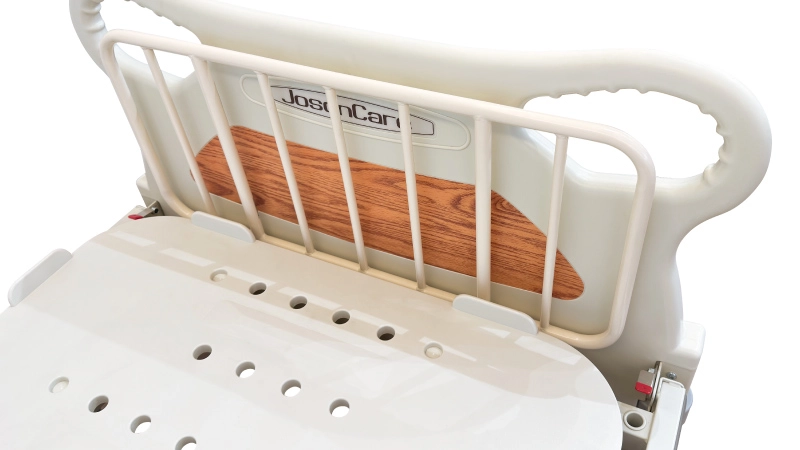

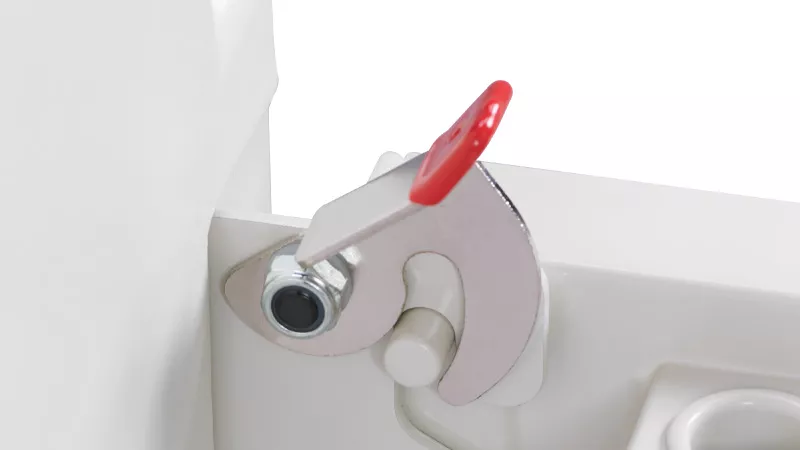

Detachable Head/Foot Board
ABS material. Quick release and install by using two safty buckles, the integrated molding handles in both sides gives a easy way to grip and move the bed.
Mattress Stoppers
Stoppers around the mattress platform to prevent mattress slip.

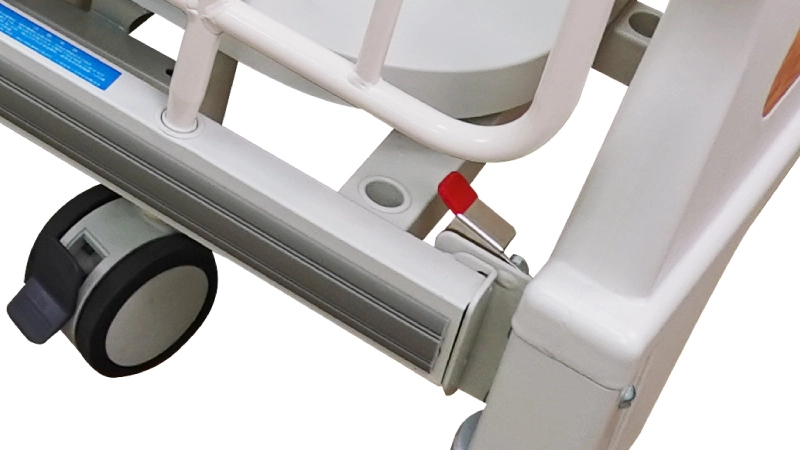

I.V. Pole Holes
The bed frame features IV pole sockets, allowing for flexible, multi-angle installation.
Drainage Bags Hanger
Drainage bag hooks are equipped on the side of the bed, allowing for the secure attachment and hanging of drainage bags to keep the surrounding area clean and organized.

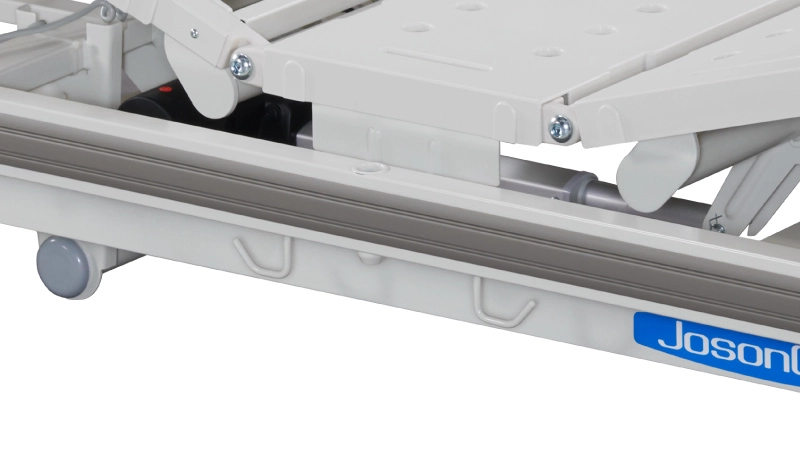

Restraint Belt Openings
The bed base is equipped with restraint belt openings, allowing caregivers to securely fasten restraints when necessary to enhance patient safety.
Provides plug-in siderails to store.
Siderail Storage Holder

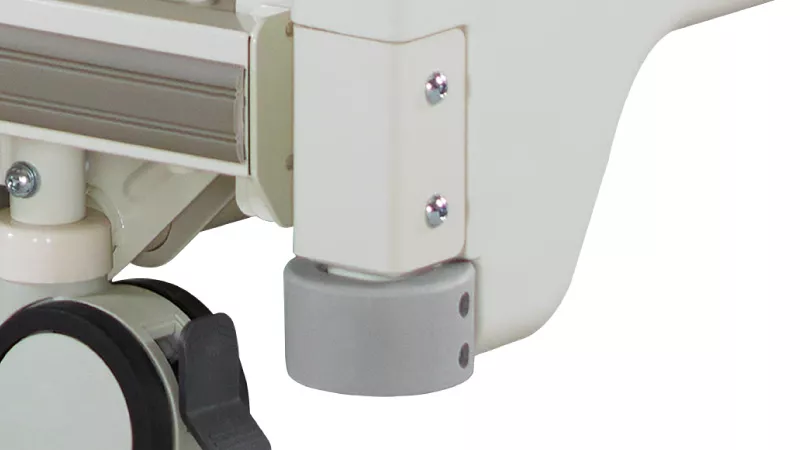

Bumpers
Avoid the damage caused when moving bed.

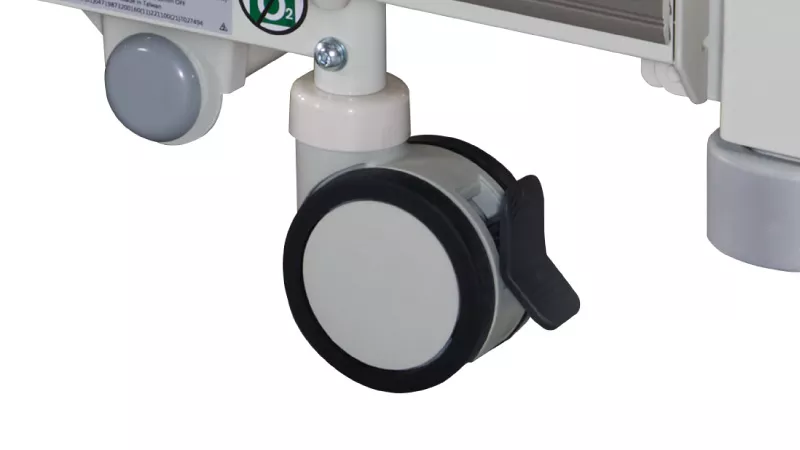

Dust-Proof Lockable Caster
Prevent objects from outside to make the movement more safely.

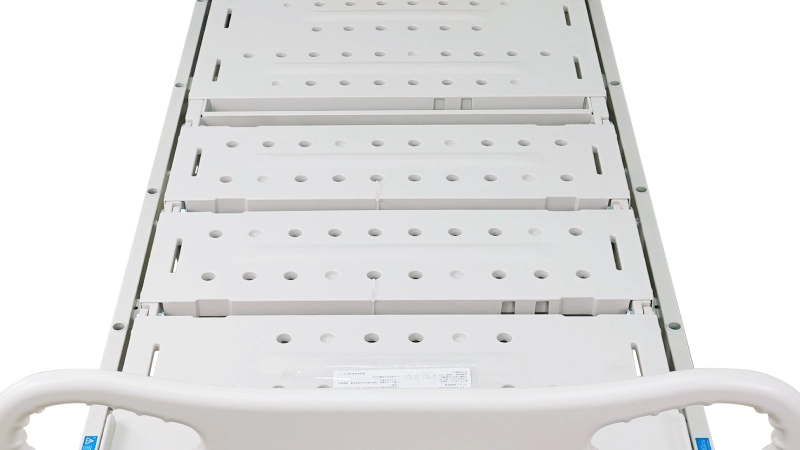

Bed Frame

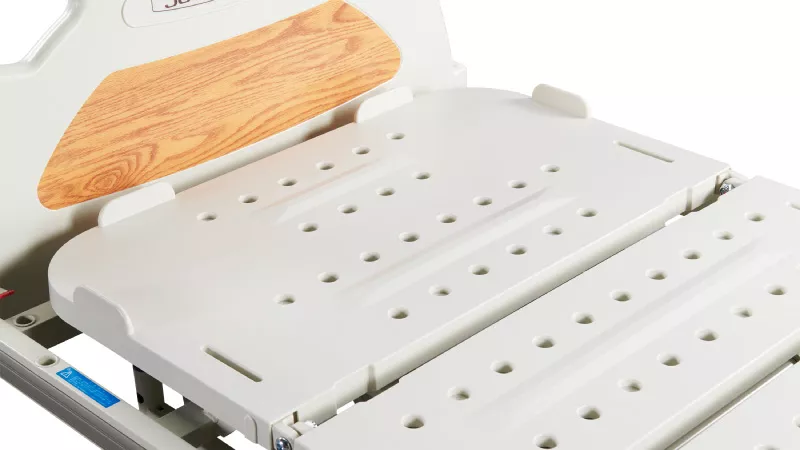

The bed frame is made of powder-coated steel, and the head/foot boards are made of ABS. The deck also features ventilation holes.

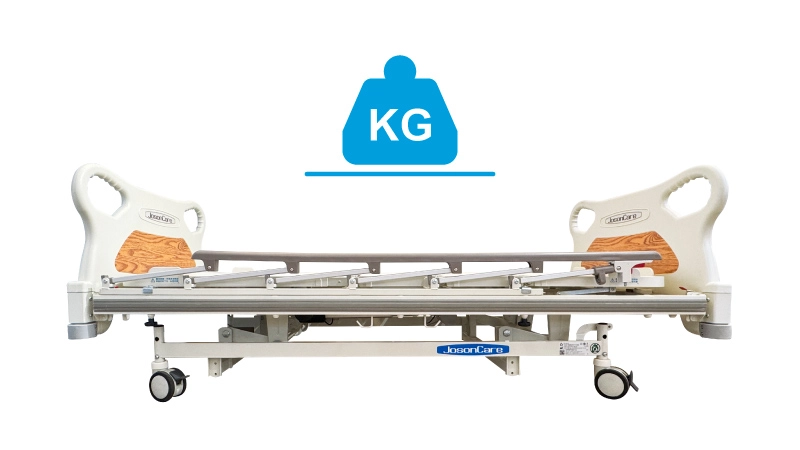

Safe Working Load
The bed frame has been professionally tested and has a maximum safe load of 170 kg, ensuring structural stability and user safety.
Backup Battery (Optional)
To provide emergency operation of the bed function in case of temporary power failure caused by temporary disconnection of power and external factors due to moving the bed.

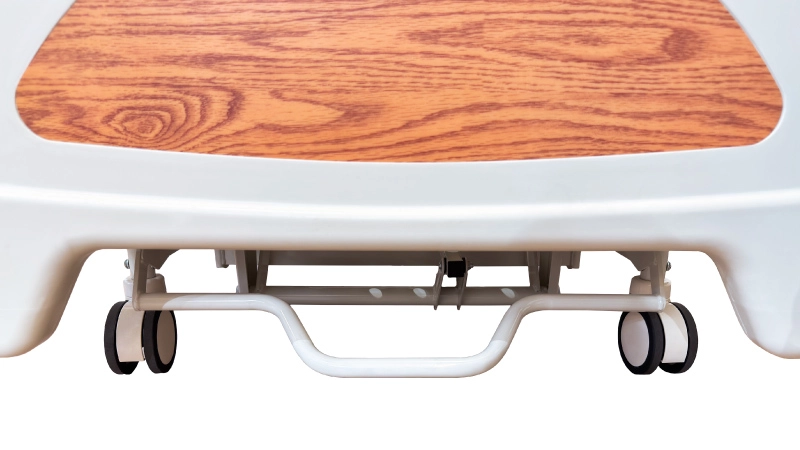

Dust-Proof Central Braking Module (Optional)
Single operate by pedal lever to the central braking module. Dust-Proof Lockable Caster prevent objects from outside to make the movement more safely.
Mattress (Optional)
L 1930 × W 840 × H 100 mm
Choose from a standard or antibacterial care mattress, both made with high-density flame-retardant foam. Available in different surface designs (e.g., corrugated, flat, wrinkle) and certified non-toxic (RoHS) and flame-retardant (BS-7177 & CA-117).
-

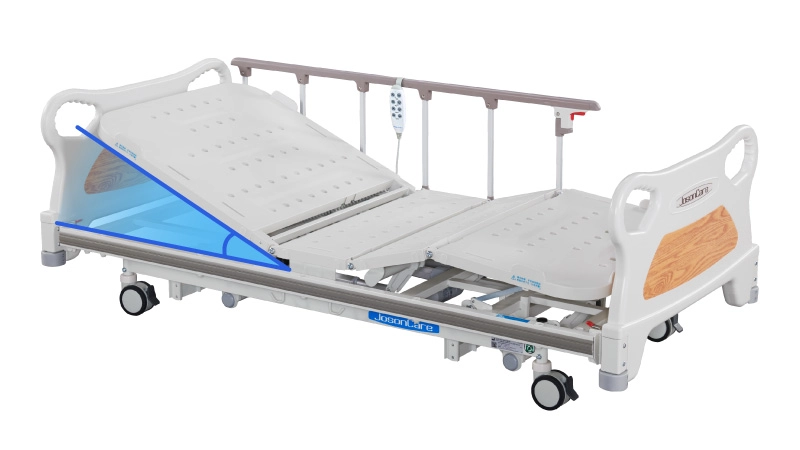

Head Elevation
0 ~ 75°

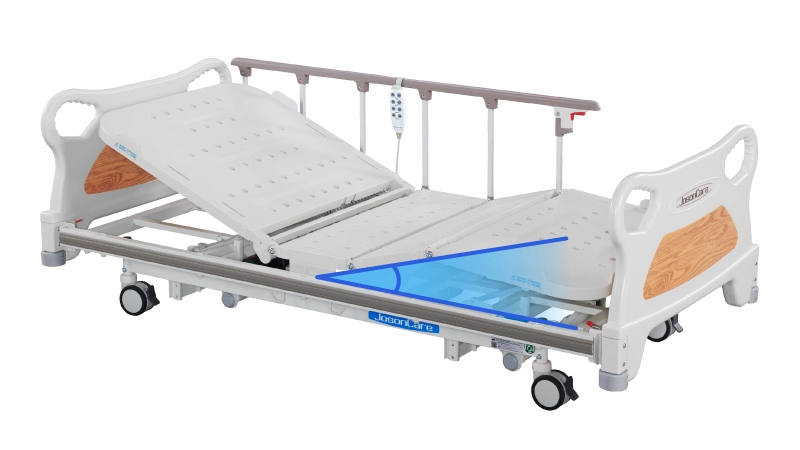

Knee Elevation
0 ~ 30°

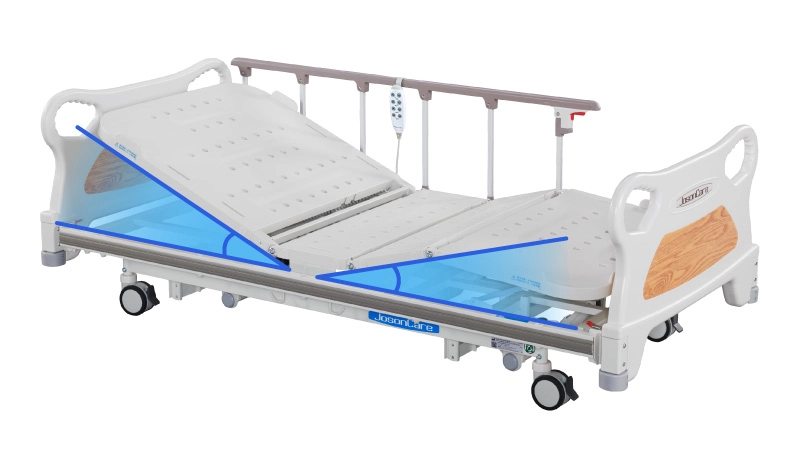

Auto-chair
A single button controls the synchronized adjustment of the backrest (0° to 75°) and the knee section (0° to 30°).

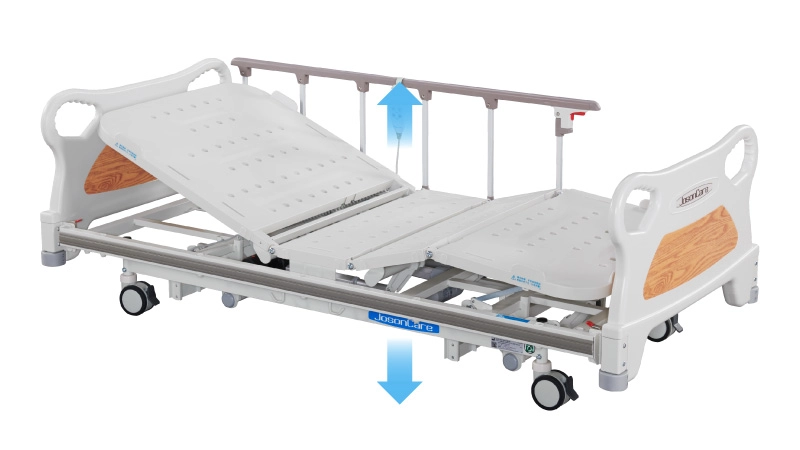

Bed Elevation
320 ~ 630mm 4" Dust-Proof Lockable Caster. -
Allows medical staff to easily adjust the bed's functions, setting it to a comfortable position that meets both patient and care needs.

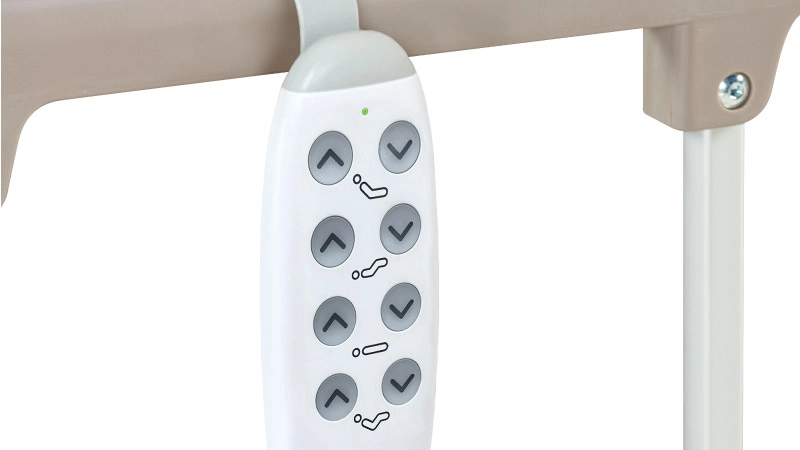

Remote Controller
- Row 1 ▲▼Head Elevation
- Row 2 ▲▼Knee Elevation
- Row 3 ▲▼Bed Elevation
- Row 4 ▲▼Auto-chair

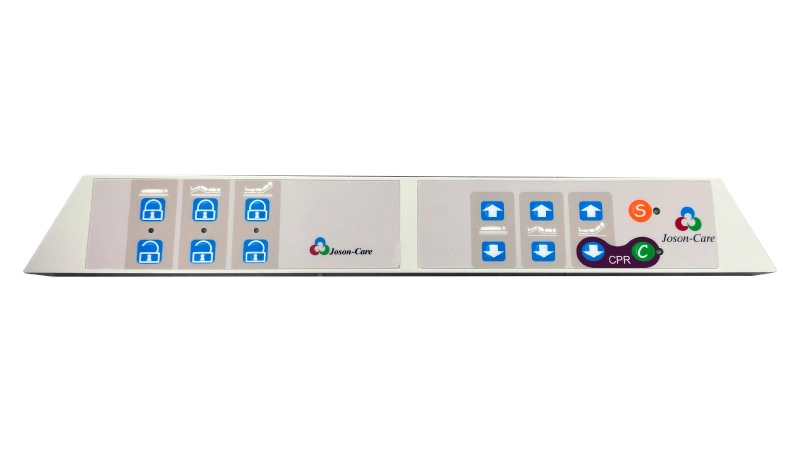

Attendant Control Panel (Optional)
The control panel provides medical staff with controls for bed height, back and knee tilt angle, guardrail button lock/unlock, and CPR quick release button.
-
3/4 Length Siderail (Optional)
It 3/4 lengh folding down siderail can be placed up or down according to caregivers needs.
Rotary Armrest Siderail (Optional)
With non-slip cover could spin out and grab firmly to support the patient to stand up or leave the bed.
Plug-In Siderail (Optional)
It can be installed on the both sides of bed or store at the foot end.
-

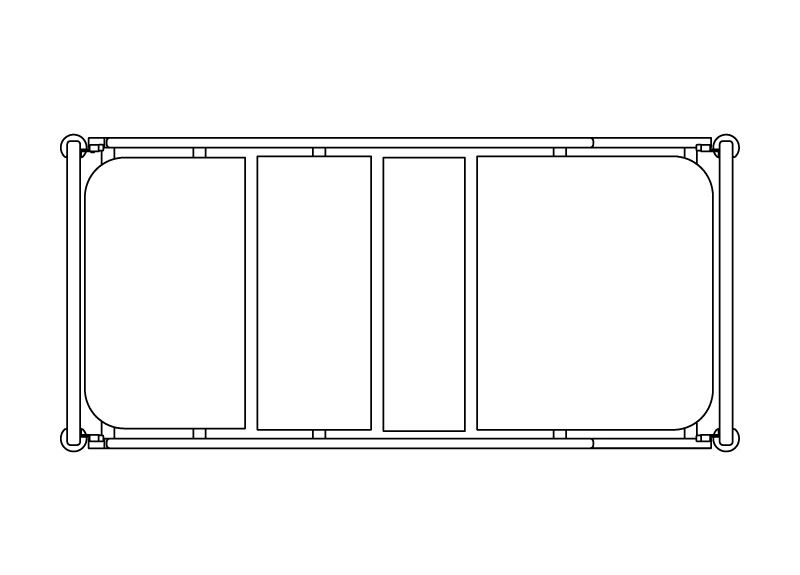

Top View

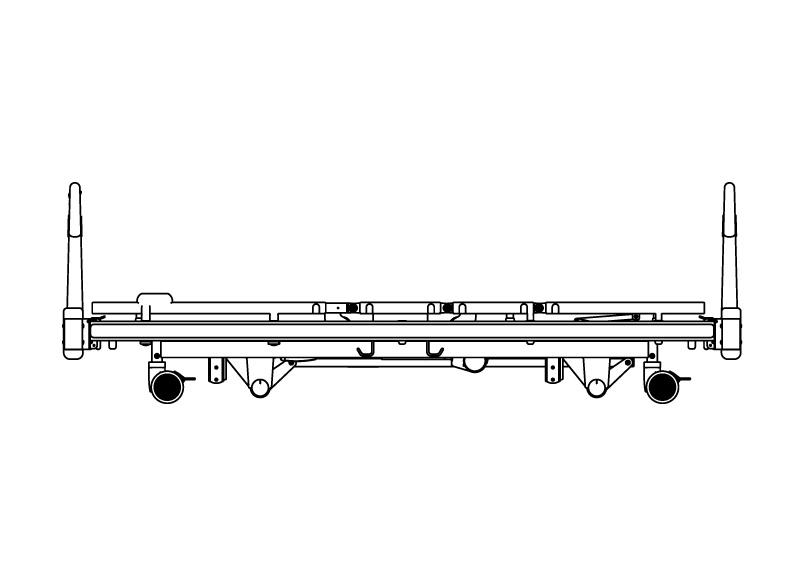

Side View

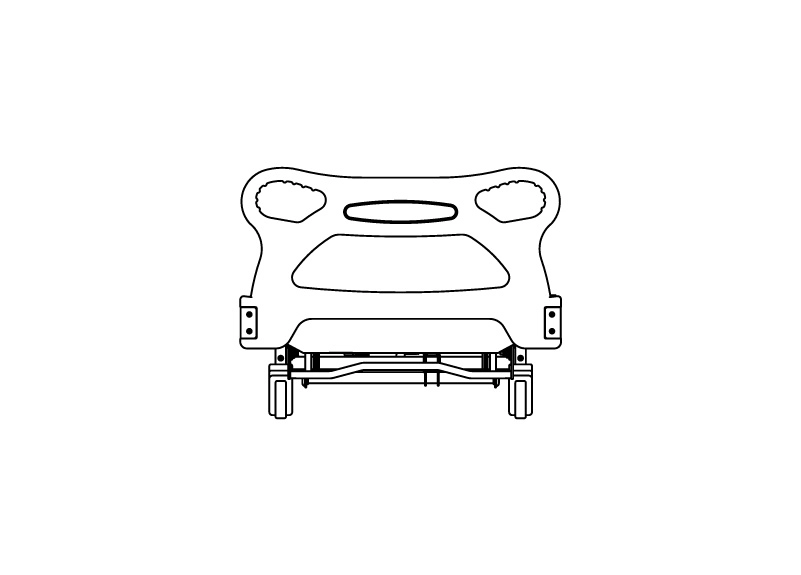

Foot-end View
Overall bed length 2130mm Overall bed width 1000mm (siderails up/down) Overall mattress base length 1910mm Overall mattress base width 845mm Overall bed height 320 ~ 630mm (4") ±20mm tolerance in all dimensions｜±30mm in siderail width｜±3° tolerance in angle degree
Actuator
Equipped with 3 motors, the drive voltage is DC 24V, providing stable and efficient driving performance.
Volts & Frequency
Supports AC 100 - 240V and 50/60Hz, making it compatible with various power environments for flexible and convenient operation.

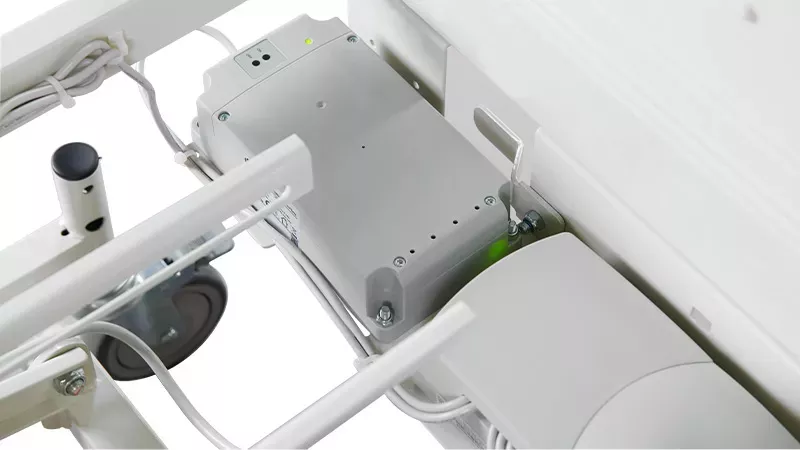

Actuator/Control Box
The electronic control system has an IP54 waterproof rating, effectively resisting moisture and dust to ensure long-term, stable operation.
-
Features
Detachable Head/Foot Board
ABS material. Quick release and install by using two safty buckles, the integrated molding handles in both sides gives a easy way to grip and move the bed.Mattress Stoppers
Stoppers around the mattress platform to prevent mattress slip.I.V. Pole Holes
The bed frame features IV pole sockets, allowing for flexible, multi-angle installation.Drainage Bags Hanger
Drainage bag hooks are equipped on the side of the bed, allowing for the secure attachment and hanging of drainage bags to keep the surrounding area clean and organized.Restraint Belt Openings
The bed base is equipped with restraint belt openings, allowing caregivers to securely fasten restraints when necessary to enhance patient safety.
Provides plug-in siderails to store.
Siderail Storage HolderBumpers
Avoid the damage caused when moving bed.Dust-Proof Lockable Caster
Prevent objects from outside to make the movement more safely.Bed Frame
The bed frame is made of powder-coated steel, and the head/foot boards are made of ABS. The deck also features ventilation holes.Safe Working Load
The bed frame has been professionally tested and has a maximum safe load of 170 kg, ensuring structural stability and user safety.Backup Battery (Optional)
To provide emergency operation of the bed function in case of temporary power failure caused by temporary disconnection of power and external factors due to moving the bed.Dust-Proof Central Braking Module (Optional)
Single operate by pedal lever to the central braking module. Dust-Proof Lockable Caster prevent objects from outside to make the movement more safely.Mattress (Optional)
L 1930 × W 840 × H 100 mm
Choose from a standard or antibacterial care mattress, both made with high-density flame-retardant foam. Available in different surface designs (e.g., corrugated, flat, wrinkle) and certified non-toxic (RoHS) and flame-retardant (BS-7177 & CA-117). -
Functions
Head Elevation
0 ~ 75°Knee Elevation
0 ~ 30°Auto-chair
A single button controls the synchronized adjustment of the backrest (0° to 75°) and the knee section (0° to 30°).Bed Elevation
320 ~ 630mm 4" Dust-Proof Lockable Caster. -
ControlAllows medical staff to easily adjust the bed's functions, setting it to a comfortable position that meets both patient and care needs.
Remote Controller
- Row 1 ▲▼Head Elevation
- Row 2 ▲▼Knee Elevation
- Row 3 ▲▼Bed Elevation
- Row 4 ▲▼Auto-chair
Attendant Control Panel (Optional)
The control panel provides medical staff with controls for bed height, back and knee tilt angle, guardrail button lock/unlock, and CPR quick release button. -
Side Rails
3/4 Length Siderail (Optional)
It 3/4 lengh folding down siderail can be placed up or down according to caregivers needs.Rotary Armrest Siderail (Optional)
With non-slip cover could spin out and grab firmly to support the patient to stand up or leave the bed.Plug-In Siderail (Optional)
It can be installed on the both sides of bed or store at the foot end. -
Dimensions
Top View
Side View
Foot-end View
Overall bed length 2130mm Overall bed width 1000mm (siderails up/down) Overall mattress base length 1910mm Overall mattress base width 845mm Overall bed height 320 ~ 630mm (4") ±20mm tolerance in all dimensions｜±30mm in siderail width｜±3° tolerance in angle degree
Actuator
Equipped with 3 motors, the drive voltage is DC 24V, providing stable and efficient driving performance.Volts & Frequency
Supports AC 100 - 240V and 50/60Hz, making it compatible with various power environments for flexible and convenient operation.Actuator/Control Box
The electronic control system has an IP54 waterproof rating, effectively resisting moisture and dust to ensure long-term, stable operation.
Some features or accessories are optional. For more information, please contact our sales team.
