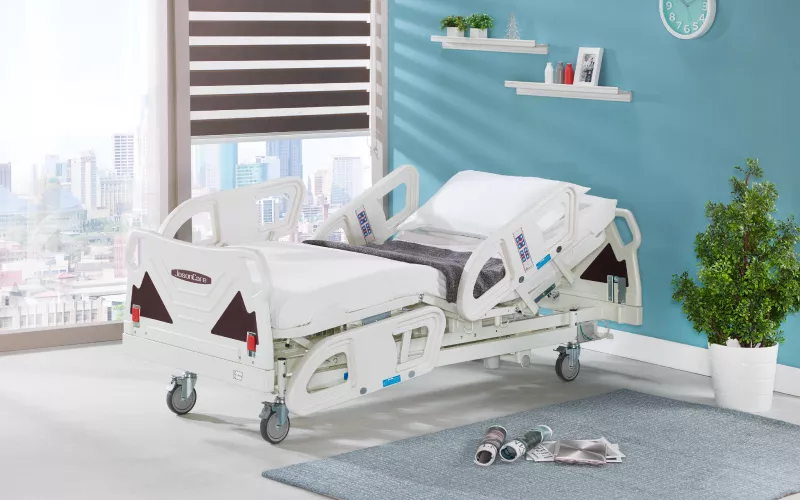

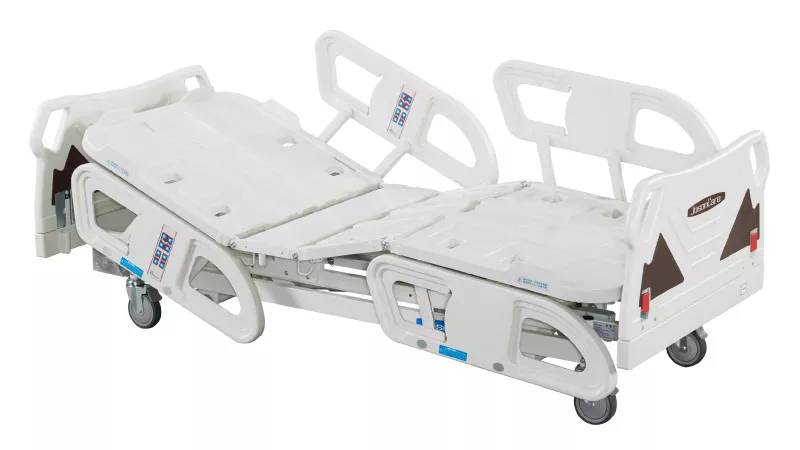

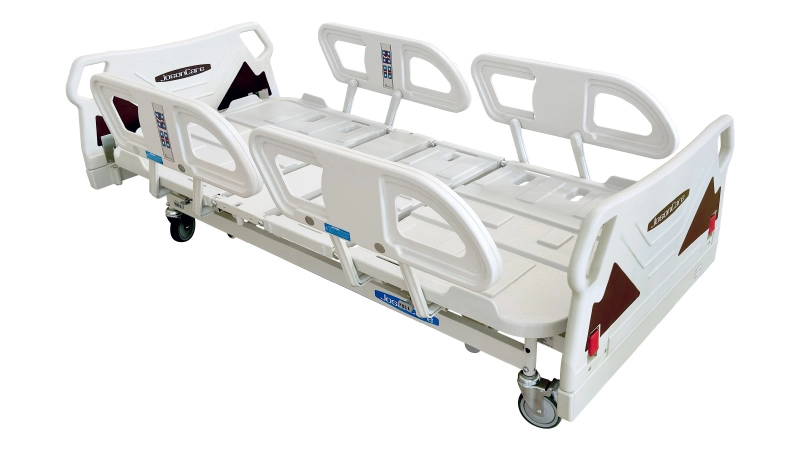

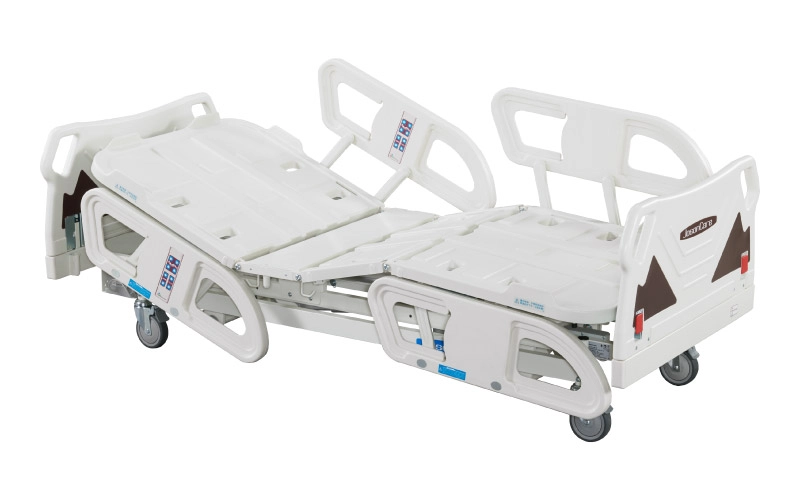

Electric Hospital Bed (2115mm)
Model：ES-05HDS
Description：
- Complies with IEC 60601-2-38 and IEC 60601-1-2 (EMC) standards.
- Four-Piece Rotating Side Rails: Effectively prevents patient falls.
- Dual-Sided Controls: Offers easy operation without tangled cords.
- Space-Saving Design: At only 100cm wide, it fits a variety of hospital room layouts.
-
Swivel Side-Rails
The side-rails provide the optimum protection against a fall.
Safety Design
The side rail safety lever ensures that patients cannot lower the rail on their own, which helps to prevent accidents and falls.

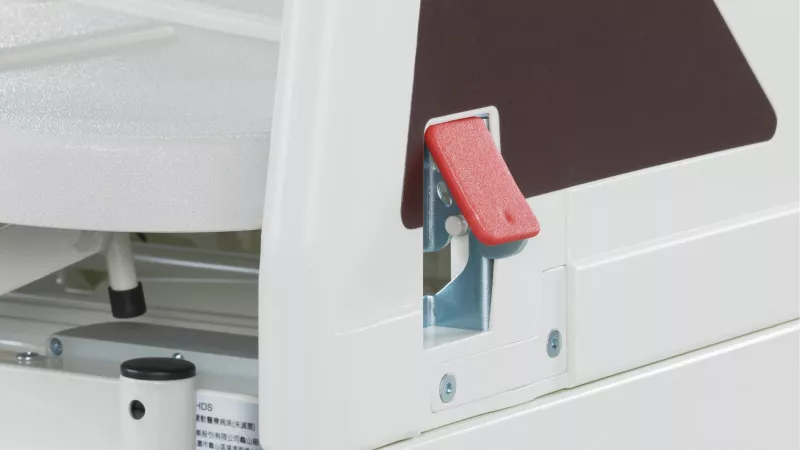

Head And Foot Board Removable
The material is one-piece molded plastic steel, with red safety switches on the left and right sides to provide quick disassembly and increase safety; the left and right sides are equipped with handles for easy grip and easy movement of the bed during disassembly.

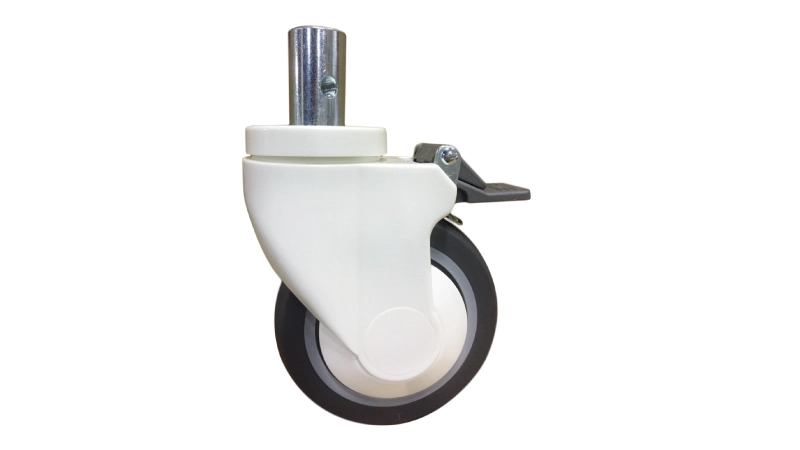

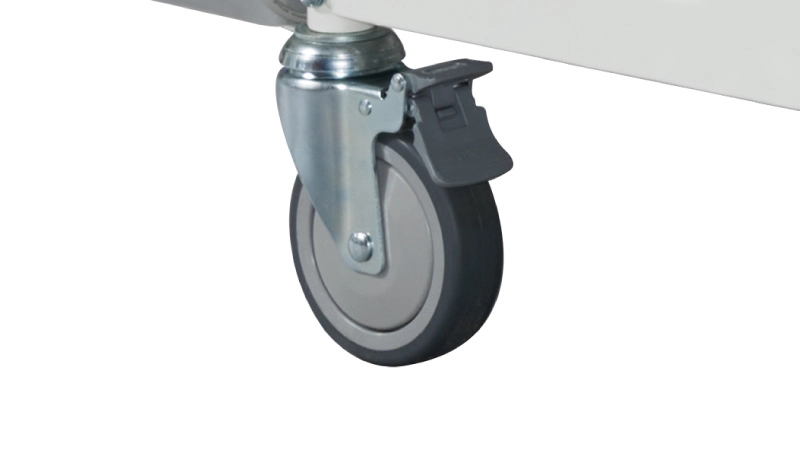

Normal Lockable Caster
An ON/OFF two-stage brake can lock or unlock the wheels, making it easy to adjust the bed's position and prevent it from sliding when stationary.

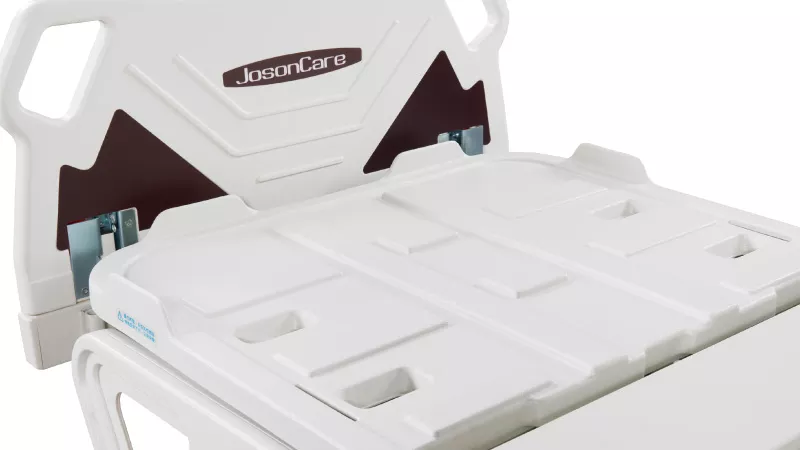

Mattress Stoppers
The bed panel is equipped with a prominent non-slip piece around the mattress to effectively avoid the mattress from sliding due to the movement of the recliner and improve safety.
I.V. Pole Holes
The bed frame features IV pole sockets, allowing for flexible, multi-angle installation.

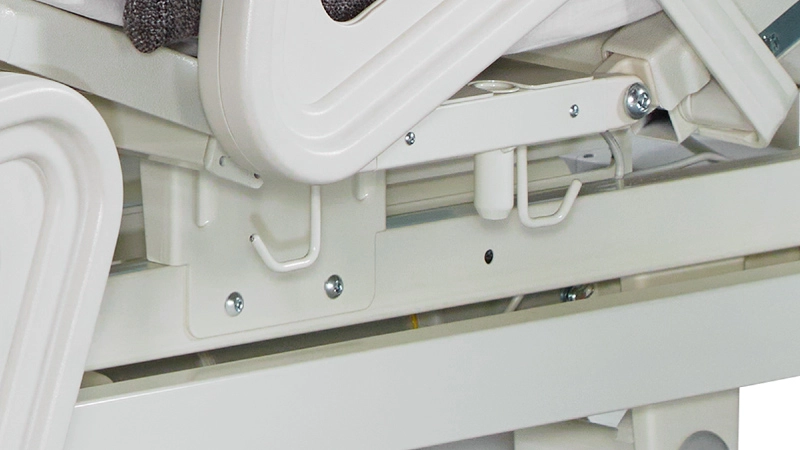

Drainage Bags Hanger
Drainage bag hooks are equipped on the side of the bed, allowing for the secure attachment and hanging of drainage bags to keep the surrounding area clean and organized.
Restraint Belt Openings
The bed base is equipped with restraint belt openings, allowing caregivers to securely fasten restraints when necessary to enhance patient safety.

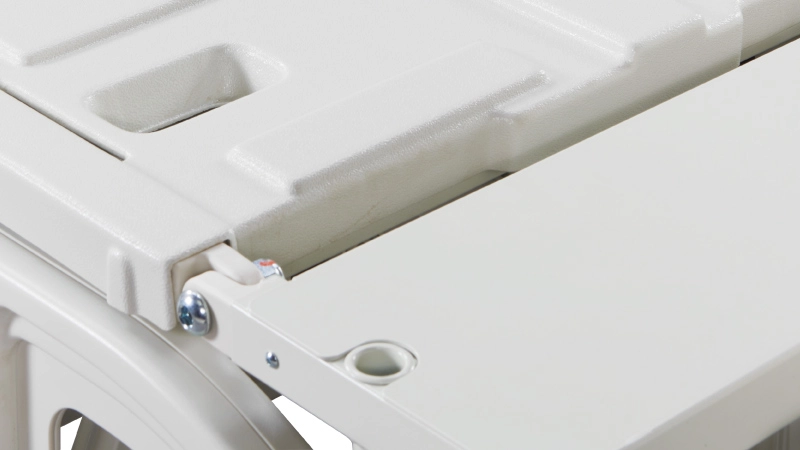

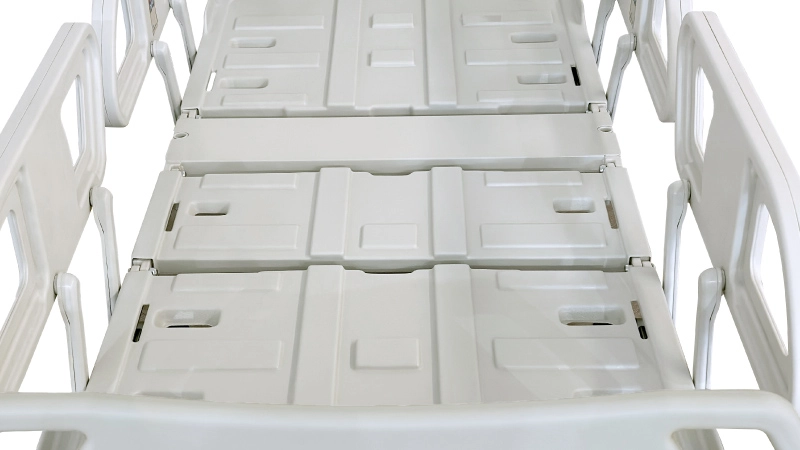

Bed Frame
The Electric Bed's frame is made of steel with powder coating and the mattress' platform is made of ABS plastic which has ventilation holes.
Safe Working Load
The bed frame has been professionally tested and has a maximum safe load of 225 kg, ensuring structural stability and user safety.
Backup Battery
To provide emergency operation of the bed function in case of temporary power failure caused by temporary disconnection of power and external factors due to moving the bed.

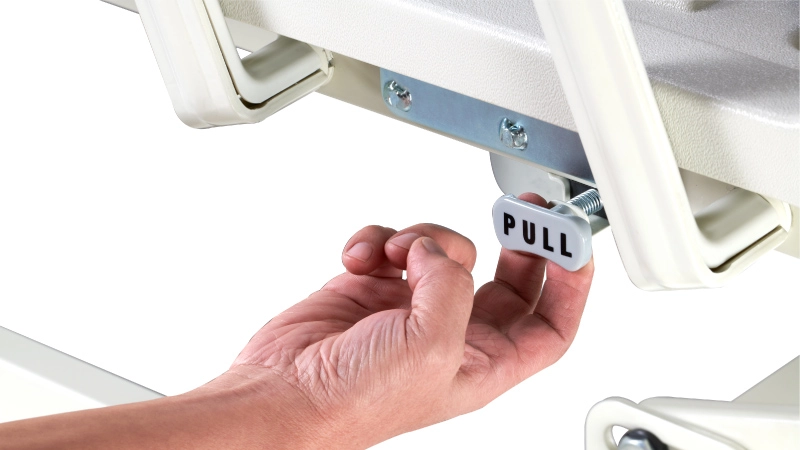

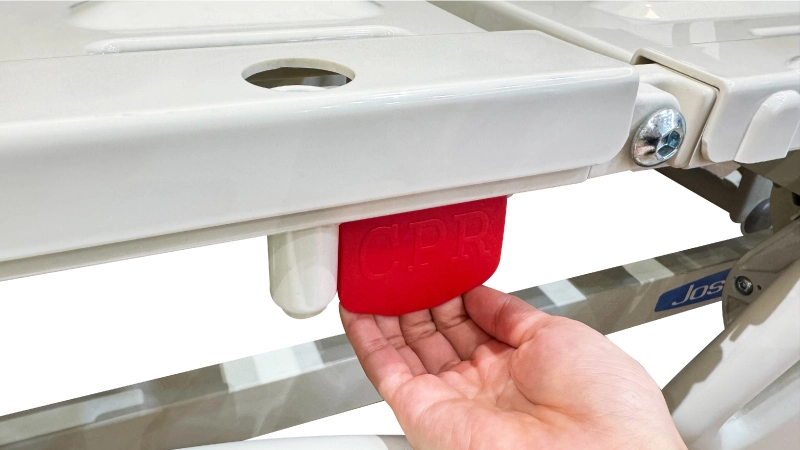

Backrest CPR Lever (Optional)
Set on both sides of the bed, so that the bed surface is quickly flattened for emergency CPR first aid.

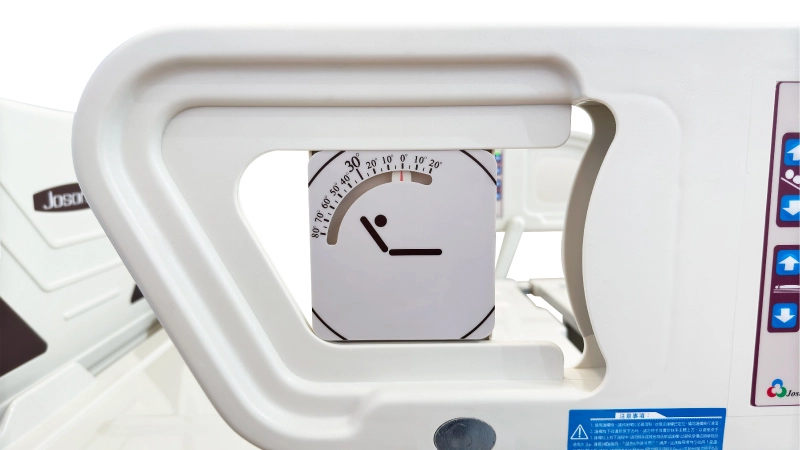

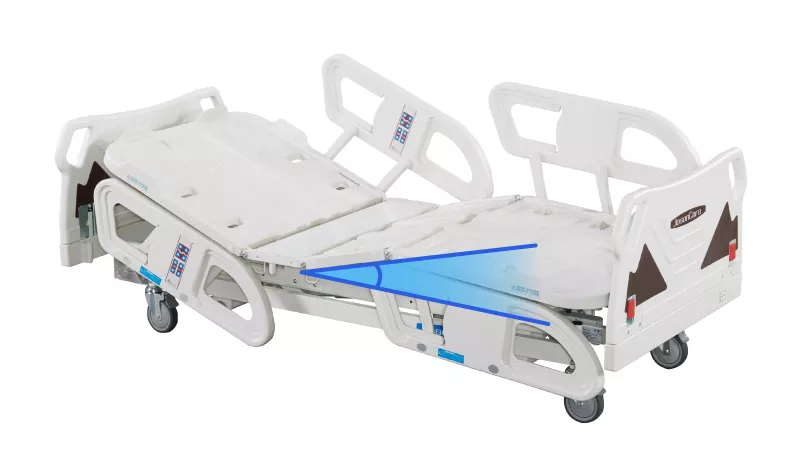

Backrest Angle Indicator (Optional)
The two side rails are equipped with bed back and bed tilt angle indicators to make it easier for the operator to adjust the bed tilt angle.
Manual Trend./Rev. Trend. (Optional)
This feature allows you to manually adjust the bed's tilt using a hand crank, meeting various care needs.
Dust-Proof Lockable Caster (Optional)
The Dust-Proof Lockable Caster prevents foreign objects from getting tangled during movement. Its integrated brake can be locked to secure the bed's position or unlocked for easy repositioning.

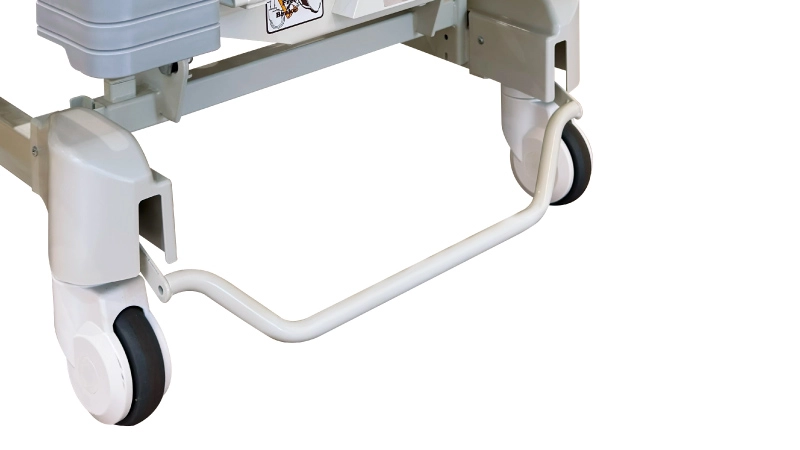

Dust-Proof Central Braking And Steering Module (Optional)
Single operate by pedal lever to the central braking and steering module. Dust-Proof Lockable Caster prevent objects from outside to make the movement more safely.
Mattress (Optional)
L 1930 × W 840 × H 100 mm
Choose from a standard or antibacterial care mattress, both made with high-density flame-retardant foam. Available in different surface designs (e.g., corrugated, flat, wrinkle) and certified non-toxic (RoHS) and flame-retardant (BS-7177 & CA-117).
-

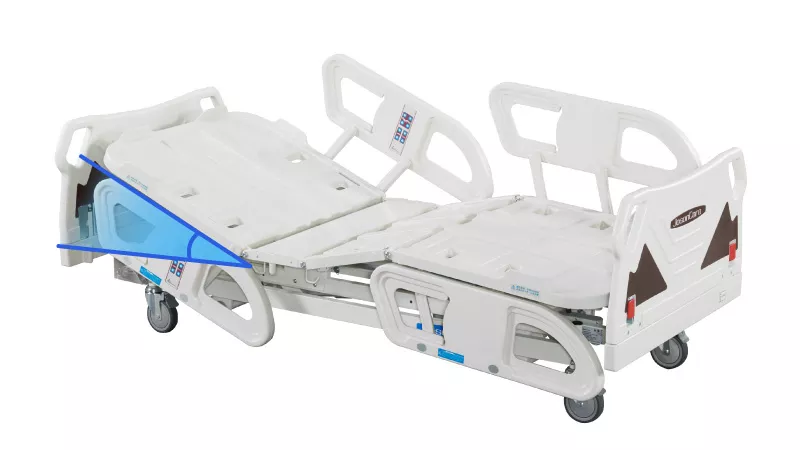

Head Elevation
Adjustable angle between the backboard and the bed surface is 0 ~ 85°
Knee Elevation
The angle between the adjustable thigh panel and the bed surface is 0 ~ 32°

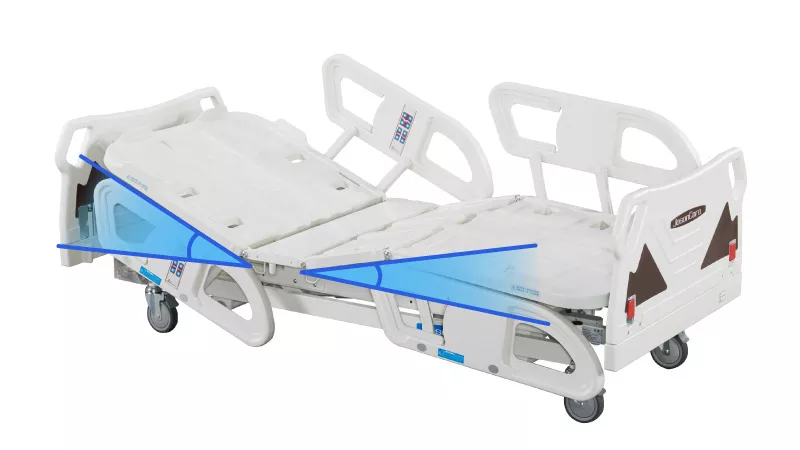

Auto-chair
A single button simultaneously adjusts the backrest angle from 0° to 85° and the knee angle from 0° to 32°.

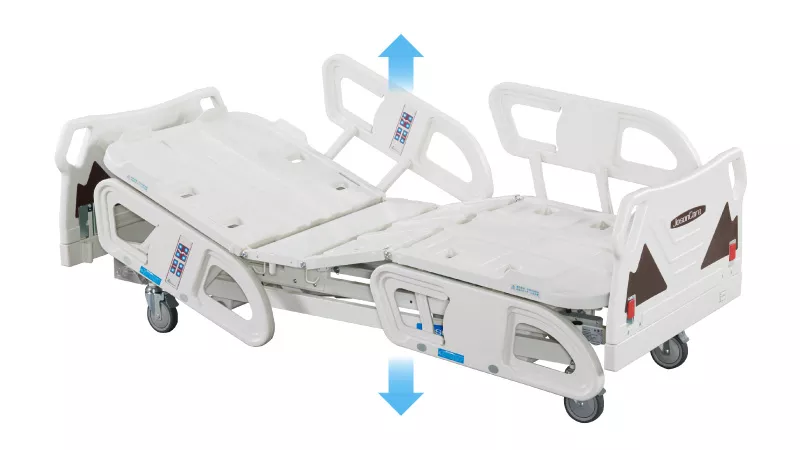

Bed Elevation
Adjustable bed height depending on the brake wheel size: 5" Central Brakeing and Steering Module: 455 ~ 755 mm; 5" Normal Lockable Castor: 395 ~ 695 mm. -

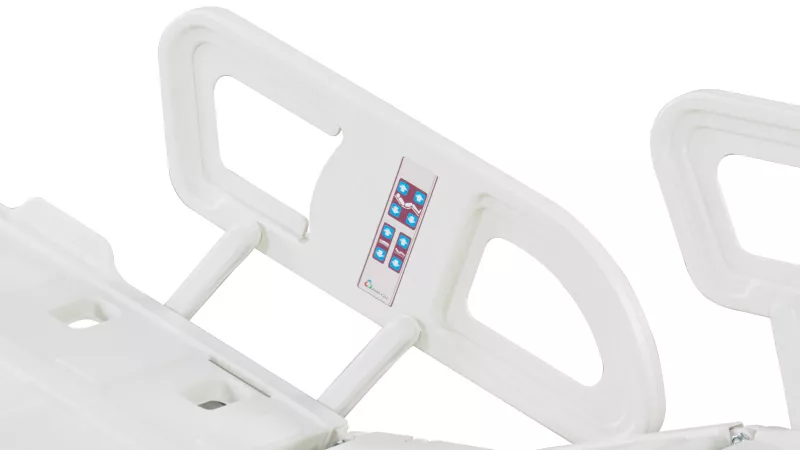

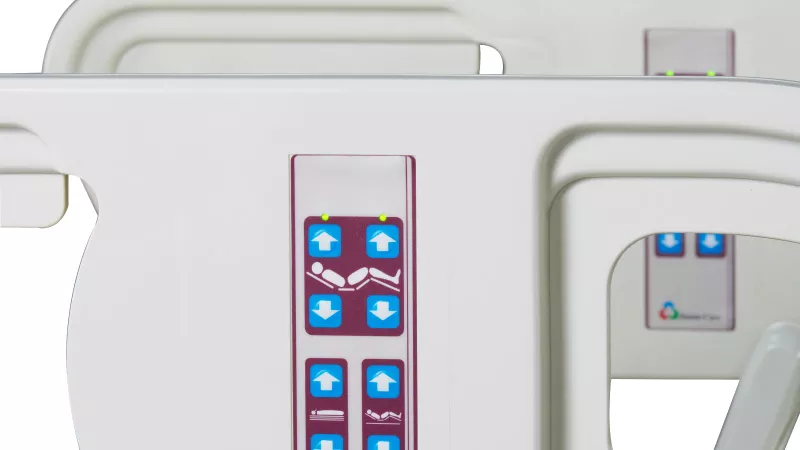

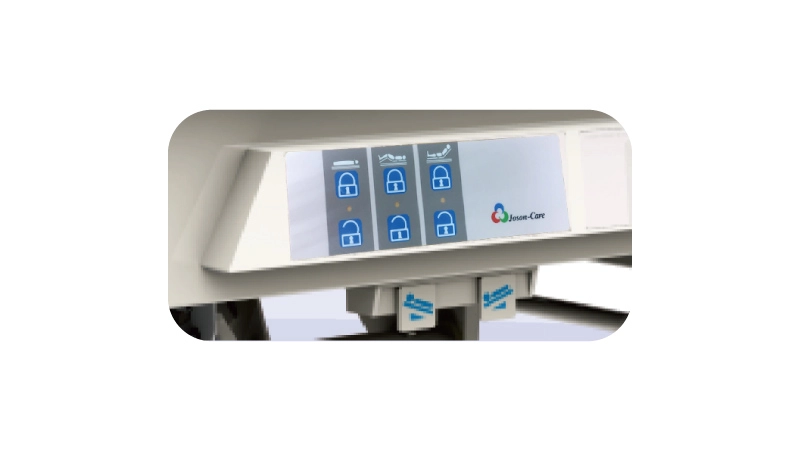

Outer / Inner Siderail Controls
The guardrails on both sides of the electric bed provide dual (internal and external) control panels that can be operated by medical personnel or allow the patient to adjust the bed height or back and knee tilt angle to the desired comfortable lying position.

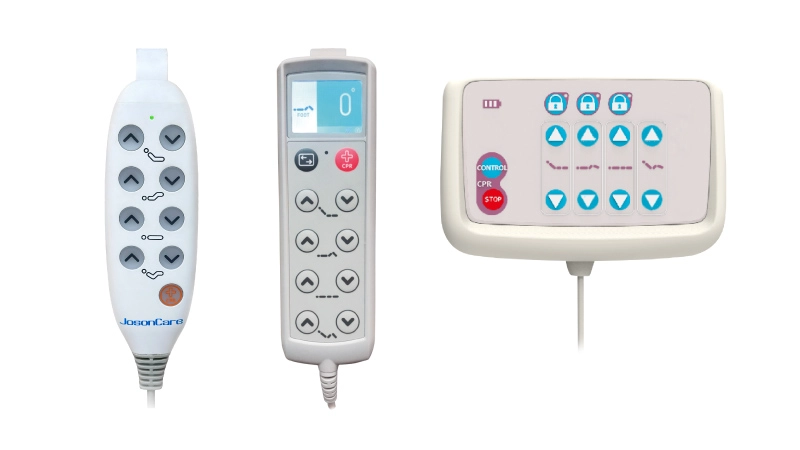

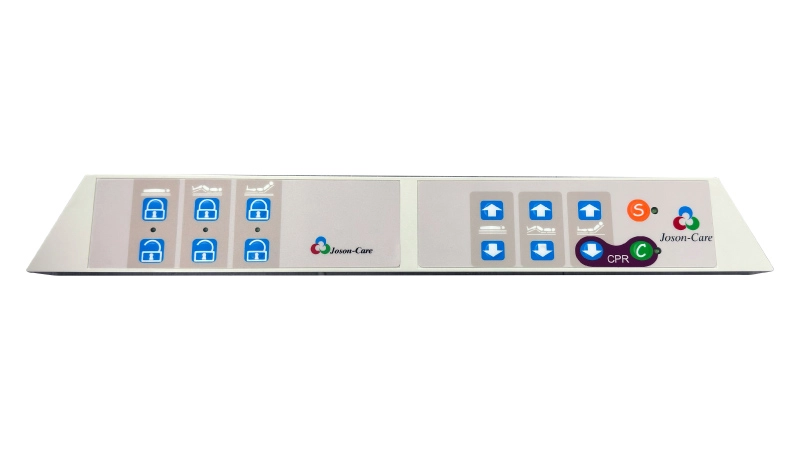

Attendant Control Panel (Optional)
The control panel provides medical staff with controls for bed height, back and knee tilt angle, guardrail button lock/unlock, and CPR quick release button.
Remote Control (Optional)
Attendant Remote Controller, another choice for caregiver to operate.
-
Safety Standard
Certified to IEC 60601-2-38, meets international safety standards for structure and electrical performance, guaranteeing the highest level of safety.
-

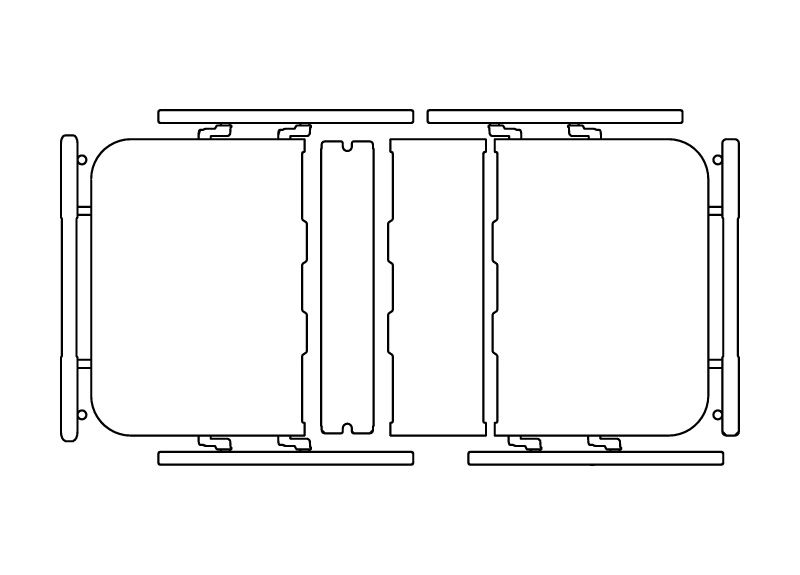

Top View

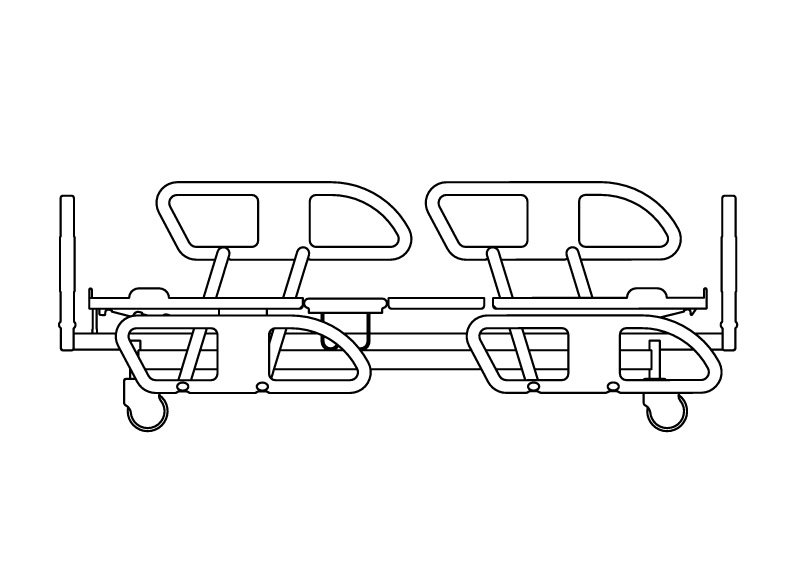

Side View

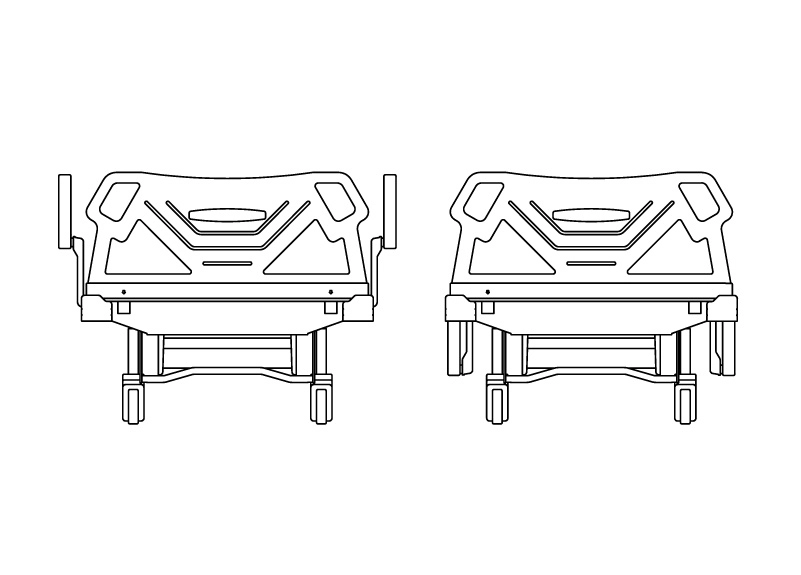

Foot-end View
Overall bed length 2115mm Overall bed width 1000mm (siderails up) ; 910mm (siderails down) Overall mattress base length 1940mm Overall mattress base width 845mm Overall bed height 395 ~ 695mm (Normal) ; 455 ~ 755mm (Central Brake) ±20mm tolerance in all dimensions｜±30mm in siderail width｜+5° -0° tolerance in angle degree
Actuator
Equipped with 3 motors, the drive voltage is DC 24V, providing stable and efficient driving performance.
Volts & Frequency
Supports AC 100-240V and 50/60Hz, making it compatible with various power environments for flexible and convenient operation.
Actuator/Control Box
The electronic control system has an IP66 waterproof rating, effectively resisting moisture and dust to ensure long-term, stable operation.
-
Features
Swivel Side-Rails
The side-rails provide the optimum protection against a fall.Safety Design
The side rail safety lever ensures that patients cannot lower the rail on their own, which helps to prevent accidents and falls.Head And Foot Board Removable
The material is one-piece molded plastic steel, with red safety switches on the left and right sides to provide quick disassembly and increase safety; the left and right sides are equipped with handles for easy grip and easy movement of the bed during disassembly.Normal Lockable Caster
An ON/OFF two-stage brake can lock or unlock the wheels, making it easy to adjust the bed's position and prevent it from sliding when stationary.Mattress Stoppers
The bed panel is equipped with a prominent non-slip piece around the mattress to effectively avoid the mattress from sliding due to the movement of the recliner and improve safety.I.V. Pole Holes
The bed frame features IV pole sockets, allowing for flexible, multi-angle installation.Drainage Bags Hanger
Drainage bag hooks are equipped on the side of the bed, allowing for the secure attachment and hanging of drainage bags to keep the surrounding area clean and organized.Restraint Belt Openings
The bed base is equipped with restraint belt openings, allowing caregivers to securely fasten restraints when necessary to enhance patient safety.Bed Frame
The Electric Bed's frame is made of steel with powder coating and the mattress' platform is made of ABS plastic which has ventilation holes.Safe Working Load
The bed frame has been professionally tested and has a maximum safe load of 225 kg, ensuring structural stability and user safety.Backup Battery
To provide emergency operation of the bed function in case of temporary power failure caused by temporary disconnection of power and external factors due to moving the bed.Backrest CPR Lever (Optional)
Set on both sides of the bed, so that the bed surface is quickly flattened for emergency CPR first aid.Backrest Angle Indicator (Optional)
The two side rails are equipped with bed back and bed tilt angle indicators to make it easier for the operator to adjust the bed tilt angle.Manual Trend./Rev. Trend. (Optional)
This feature allows you to manually adjust the bed's tilt using a hand crank, meeting various care needs.Dust-Proof Lockable Caster (Optional)
The Dust-Proof Lockable Caster prevents foreign objects from getting tangled during movement. Its integrated brake can be locked to secure the bed's position or unlocked for easy repositioning.Dust-Proof Central Braking And Steering Module (Optional)
Single operate by pedal lever to the central braking and steering module. Dust-Proof Lockable Caster prevent objects from outside to make the movement more safely.Mattress (Optional)
L 1930 × W 840 × H 100 mm
Choose from a standard or antibacterial care mattress, both made with high-density flame-retardant foam. Available in different surface designs (e.g., corrugated, flat, wrinkle) and certified non-toxic (RoHS) and flame-retardant (BS-7177 & CA-117). -
Functions
Head Elevation
Adjustable angle between the backboard and the bed surface is 0 ~ 85°Knee Elevation
The angle between the adjustable thigh panel and the bed surface is 0 ~ 32°Auto-chair
A single button simultaneously adjusts the backrest angle from 0° to 85° and the knee angle from 0° to 32°.Bed Elevation
Adjustable bed height depending on the brake wheel size: 5" Central Brakeing and Steering Module: 455 ~ 755 mm; 5" Normal Lockable Castor: 395 ~ 695 mm. -
Control
Outer / Inner Siderail Controls
The guardrails on both sides of the electric bed provide dual (internal and external) control panels that can be operated by medical personnel or allow the patient to adjust the bed height or back and knee tilt angle to the desired comfortable lying position.Attendant Control Panel (Optional)
The control panel provides medical staff with controls for bed height, back and knee tilt angle, guardrail button lock/unlock, and CPR quick release button.Remote Control (Optional)
Attendant Remote Controller, another choice for caregiver to operate. -
Standards
Safety Standard
Certified to IEC 60601-2-38, meets international safety standards for structure and electrical performance, guaranteeing the highest level of safety. -
Dimensions
Top View
Side View
Foot-end View
Overall bed length 2115mm Overall bed width 1000mm (siderails up) ; 910mm (siderails down) Overall mattress base length 1940mm Overall mattress base width 845mm Overall bed height 395 ~ 695mm (Normal) ; 455 ~ 755mm (Central Brake) ±20mm tolerance in all dimensions｜±30mm in siderail width｜+5° -0° tolerance in angle degree
Actuator
Equipped with 3 motors, the drive voltage is DC 24V, providing stable and efficient driving performance.Volts & Frequency
Supports AC 100-240V and 50/60Hz, making it compatible with various power environments for flexible and convenient operation.Actuator/Control Box
The electronic control system has an IP66 waterproof rating, effectively resisting moisture and dust to ensure long-term, stable operation.
Some features or accessories are optional. For more information, please contact our sales team.
