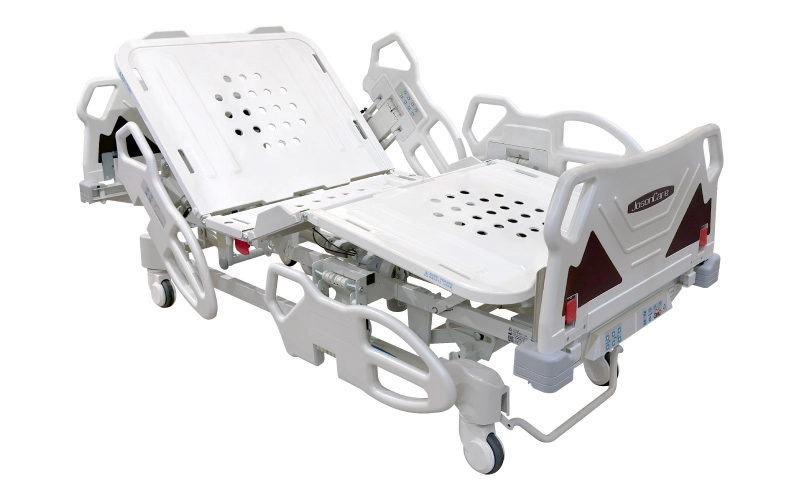

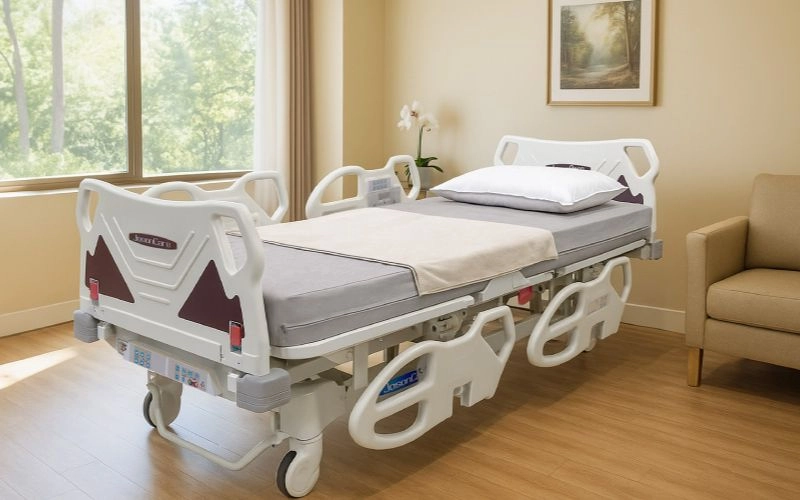

Electric Hospital Bed
Model：ES-96HD
Description：
- IEC 60601-2-38 and IEC 60601-1-2 (EMC) compliant.
- Five Functions: head, knee, bed height elevation and trendelenburg/reverse Tredelenburg.
- Durable Build: Powder-coated steel frame with an ABS plastic bed base.
- ICU-Ready: Designed to enhance care efficiency.
-
Vertical Slide Rail
The material is one-piece molded plastic steel, and the guardrail adopts a straight-up and straight-down retracting mode to allow users to close the guardrail more quickly.
Safety Design
The guardrail safety switch is set on the outside of the guardrail to ensure that patients cannot lower the guardrail by themselves to avoid accidents; the guardrail handle is designed to facilitate the application of force to move the bed and comply with international safety standards.
Bumpers
Avoid the damage caused when moving bed.
Dust-Proof Central Braking And Steering Module
Single operate by pedal lever to the central braking and steering module. Dust-Proof Lockable Caster prevent objects from outside to make the movement more safely.
Angle Indicator
An outer side rail control panel on the electric bed allows medical staff to operate the bed's functions. It also features a display for the backrest angle, making it easy for caregivers to monitor the bed's position.
Detachable Head/Foot Board
ABS material. Quick release and install by using two safty buckles, the integrated molding handles in both sides gives a easy way to grip and move the bed.
Mattress Stoppers
Stoppers around the mattress platform to prevent mattress slip.
I.V. Pole Holes
The bed frame features IV pole sockets, allowing for flexible, multi-angle installation.
Drainage Bags Hanger
Drainage bag hooks are equipped on the side of the bed, allowing for the secure attachment and hanging of drainage bags to keep the surrounding area clean and organized.
Restraint Belt Openings
The bed base is equipped with restraint belt openings, allowing caregivers to securely fasten restraints when necessary to enhance patient safety.
Bed Frame
The bed frame is made of powder-coated steel, and the head/foot boards are made of ABS. The deck also features ventilation holes.
Safe Working Load
The bed frame has been professionally tested and has a maximum safe load of 225 kg, ensuring structural stability and user safety.
Backup Battery
Provide bed electricity to controll when power failure or remove the plug.
Set on both sides of the bed, so that the bed surface is quickly flattened for emergency CPR first aid.
Backrest CPR Lever (Optional)
Normal Lockable Caster (Optional)
An ON/OFF two-stage brake can lock or unlock the wheels, making it easy to adjust the bed's position and prevent it from sliding when stationary.
Dust-Proof Lockable Caster (Optional)
The Dust-Proof Lockable Caster prevents foreign objects from getting tangled during movement. Its integrated brake can be locked to secure the bed's position or unlocked for easy repositioning.
Mattress (Optional)
L 1980 × W 890 × H 100 mm
Choose from a standard or antibacterial care mattress, both made with high-density flame-retardant foam. Available in different surface designs (e.g., corrugated, flat, wrinkle) and certified non-toxic (RoHS) and flame-retardant (BS-7177 & CA-117).
-
Head Elevation
0 ~ 85°
Knee Elevation
0 ~ 32°
Auto-chair
A single button simultaneously adjusts the backrest angle from 0° to 85° and the knee angle from 0° to 32°.
Bed Elevation
455 ~ 755 mm (5")
Trendelenburg / Reverse Trendelenburg
± 0 ~ 12° -
Inner Siderail Controls
Inner siderail provide controls to provide patients and caregivers to control backrest/ knee and auto-chair position.
Outer Siderail Controls
An outer side rail control panel on the electric bed allows medical staff to operate the bed's functions. It also features a display for the backrest angle, making it easy for caregivers to monitor the bed's position.Attendant Control Panel
ACP control below functions:1. Bed Position Control: Provides Elevation, backrest, knee and Tre./Rev. Tre., Chair position control. 2. Lock-out Function: To prevent unexpected touch on siderail control panel. 3. Auto Regression: Control the bed to the flat position.
Remote Control (Optional)
Attendant Remote Controller, another choice for caregiver to operate.
-
Safety Standard
Certified to IEC 60601-2-38, meets international safety standards for structure and electrical performance, guaranteeing the highest level of safety.
-
Top View
Side View
Foot-end View
Overall bed length 2250mm Overall bed width 1060mm (siderails up) ; 940mm (siderails down) Overall mattress base length 2020mm Overall mattress base width 925mm Overall bed height 455 ~ 755mm (5″) ±20mm tolerance in all dimensions｜±30mm in siderail width｜+5° -0° tolerance in angle degree
Actuator
Equipped with 4 motors, the drive voltage is DC 24V, providing stable and efficient driving performance.
Volts & Frequency
Supports AC 100-240V and 50/60Hz, making it compatible with various power environments for flexible and convenient operation.
Actuator/Control Box
The electronic control system has an IP66 waterproof rating, effectively resisting moisture and dust to ensure long-term, stable operation.
-
Features
Vertical Slide Rail
The material is one-piece molded plastic steel, and the guardrail adopts a straight-up and straight-down retracting mode to allow users to close the guardrail more quickly.Safety Design
The guardrail safety switch is set on the outside of the guardrail to ensure that patients cannot lower the guardrail by themselves to avoid accidents; the guardrail handle is designed to facilitate the application of force to move the bed and comply with international safety standards.Bumpers
Avoid the damage caused when moving bed.Dust-Proof Central Braking And Steering Module
Single operate by pedal lever to the central braking and steering module. Dust-Proof Lockable Caster prevent objects from outside to make the movement more safely.Angle Indicator
An outer side rail control panel on the electric bed allows medical staff to operate the bed's functions. It also features a display for the backrest angle, making it easy for caregivers to monitor the bed's position.Detachable Head/Foot Board
ABS material. Quick release and install by using two safty buckles, the integrated molding handles in both sides gives a easy way to grip and move the bed.Mattress Stoppers
Stoppers around the mattress platform to prevent mattress slip.I.V. Pole Holes
The bed frame features IV pole sockets, allowing for flexible, multi-angle installation.Drainage Bags Hanger
Drainage bag hooks are equipped on the side of the bed, allowing for the secure attachment and hanging of drainage bags to keep the surrounding area clean and organized.Restraint Belt Openings
The bed base is equipped with restraint belt openings, allowing caregivers to securely fasten restraints when necessary to enhance patient safety.Bed Frame
The bed frame is made of powder-coated steel, and the head/foot boards are made of ABS. The deck also features ventilation holes.Safe Working Load
The bed frame has been professionally tested and has a maximum safe load of 225 kg, ensuring structural stability and user safety.Backup Battery
Provide bed electricity to controll when power failure or remove the plug.
Set on both sides of the bed, so that the bed surface is quickly flattened for emergency CPR first aid.
Backrest CPR Lever (Optional)Normal Lockable Caster (Optional)
An ON/OFF two-stage brake can lock or unlock the wheels, making it easy to adjust the bed's position and prevent it from sliding when stationary.Dust-Proof Lockable Caster (Optional)
The Dust-Proof Lockable Caster prevents foreign objects from getting tangled during movement. Its integrated brake can be locked to secure the bed's position or unlocked for easy repositioning.Mattress (Optional)
L 1980 × W 890 × H 100 mm
Choose from a standard or antibacterial care mattress, both made with high-density flame-retardant foam. Available in different surface designs (e.g., corrugated, flat, wrinkle) and certified non-toxic (RoHS) and flame-retardant (BS-7177 & CA-117). -
Functions
Head Elevation
0 ~ 85°Knee Elevation
0 ~ 32°Auto-chair
A single button simultaneously adjusts the backrest angle from 0° to 85° and the knee angle from 0° to 32°.Bed Elevation
455 ~ 755 mm (5")Trendelenburg / Reverse Trendelenburg
± 0 ~ 12° -
Control
Inner Siderail Controls
Inner siderail provide controls to provide patients and caregivers to control backrest/ knee and auto-chair position.Outer Siderail Controls
An outer side rail control panel on the electric bed allows medical staff to operate the bed's functions. It also features a display for the backrest angle, making it easy for caregivers to monitor the bed's position.Attendant Control Panel
ACP control below functions:1. Bed Position Control: Provides Elevation, backrest, knee and Tre./Rev. Tre., Chair position control. 2. Lock-out Function: To prevent unexpected touch on siderail control panel. 3. Auto Regression: Control the bed to the flat position.Remote Control (Optional)
Attendant Remote Controller, another choice for caregiver to operate. -
Standards
Safety Standard
Certified to IEC 60601-2-38, meets international safety standards for structure and electrical performance, guaranteeing the highest level of safety. -
Dimensions
Top View
Side View
Foot-end View
Overall bed length 2250mm Overall bed width 1060mm (siderails up) ; 940mm (siderails down) Overall mattress base length 2020mm Overall mattress base width 925mm Overall bed height 455 ~ 755mm (5″) ±20mm tolerance in all dimensions｜±30mm in siderail width｜+5° -0° tolerance in angle degree
Actuator
Equipped with 4 motors, the drive voltage is DC 24V, providing stable and efficient driving performance.Volts & Frequency
Supports AC 100-240V and 50/60Hz, making it compatible with various power environments for flexible and convenient operation.Actuator/Control Box
The electronic control system has an IP66 waterproof rating, effectively resisting moisture and dust to ensure long-term, stable operation.
Some features or accessories are optional. For more information, please contact our sales team.
