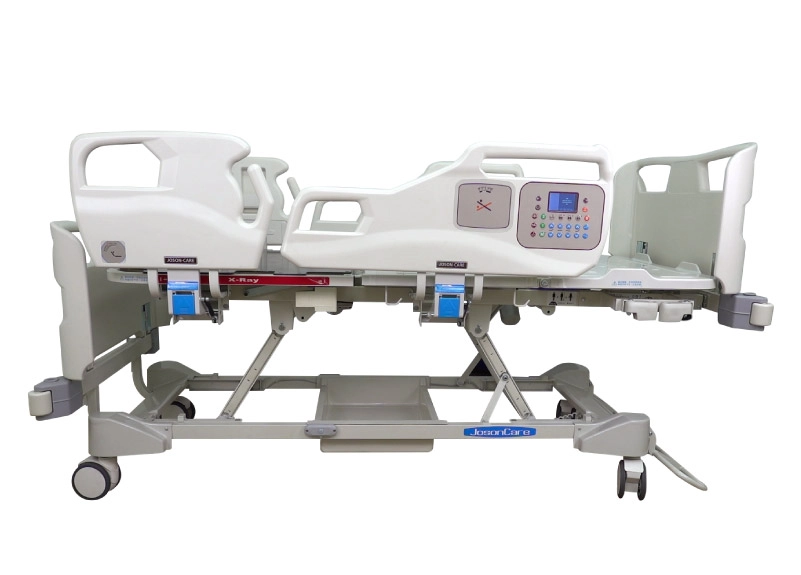

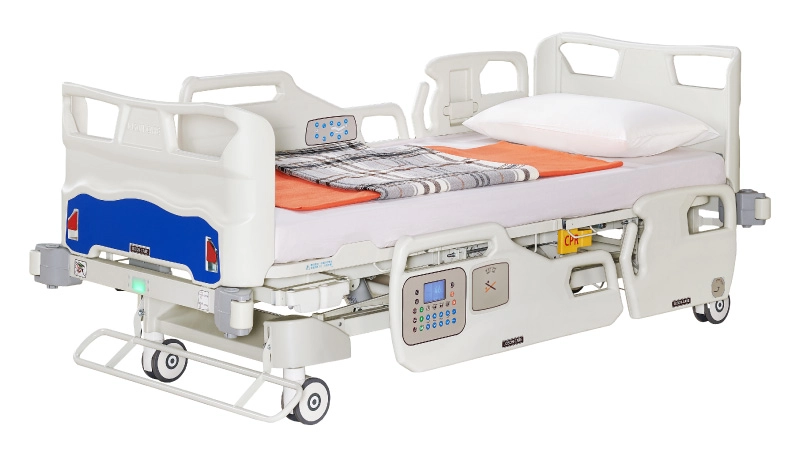

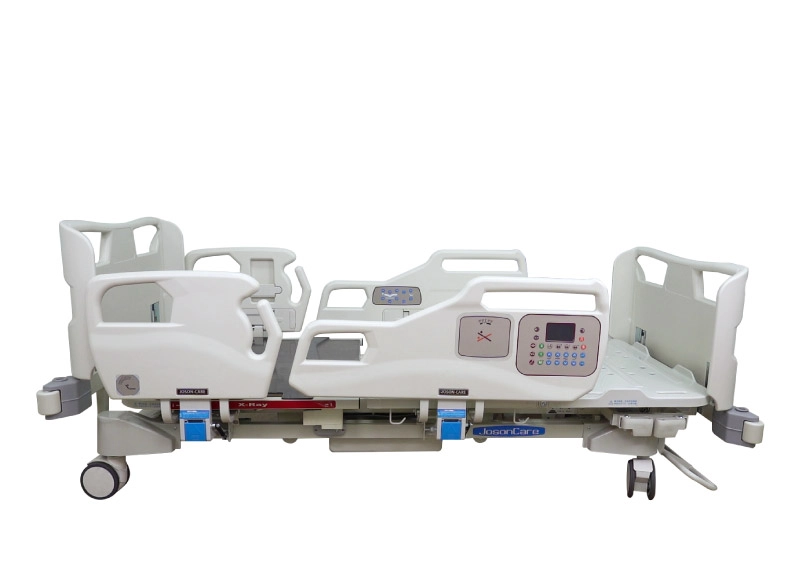

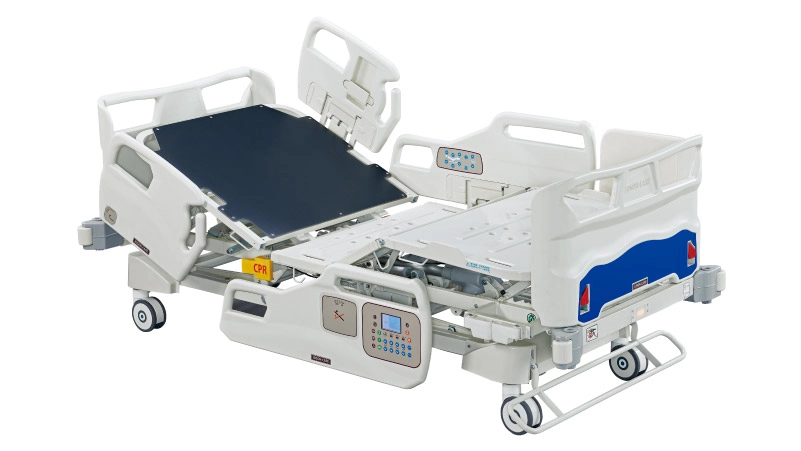

ICU Bed (4 Motors/X-ray)
Model：ES-19HD
Description：
- Complies with ISO 13485, IEC 60601-2-52, IEC 60601-1-2, and IEC 60601-1 for medical device quality and safety.
- Five functional modes, head, knee, bed elevation, auto-chair and trendelenburg & reverse trendelenburg.
- Designed for intensive care with an integrated X-Ray holder.
- Features a strong powder-coated steel frame and durable ABS plastic bed base.
-
Shear Stress Bi-directional Release
The hip and back boards decline to minimize shear stress and ease pressure on the back and abdomen.
Vertical Slide Rail
Made of FRP material. The side rail can be quickly dropped down and lifted up.
Safety Design
The safety design to ensure patient couldn't control siderail from inner side.

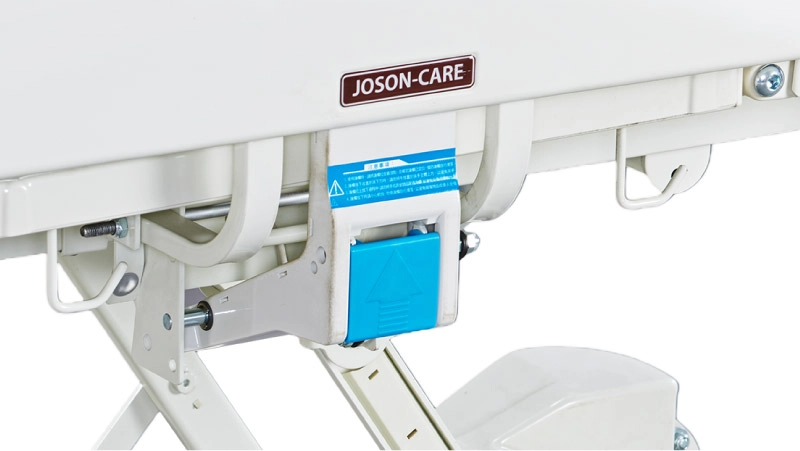

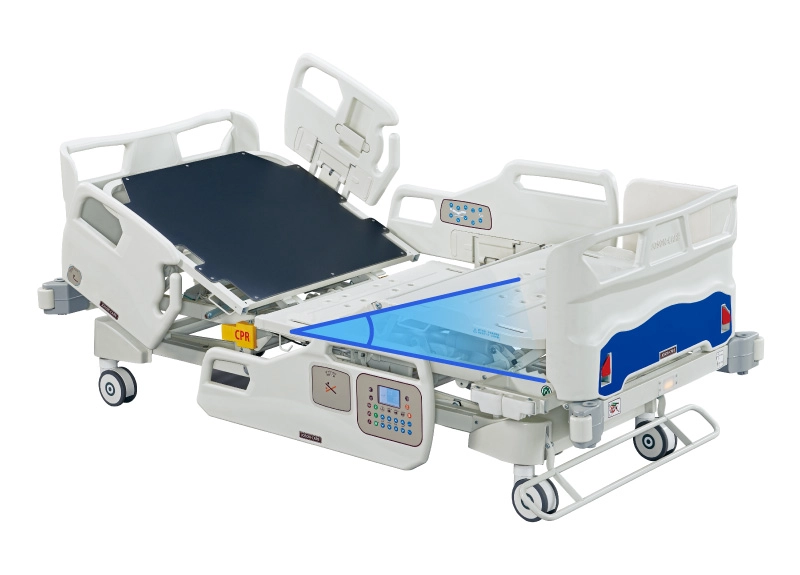

Backrest X-Ray Module
Allowing examination without patient mobilization.

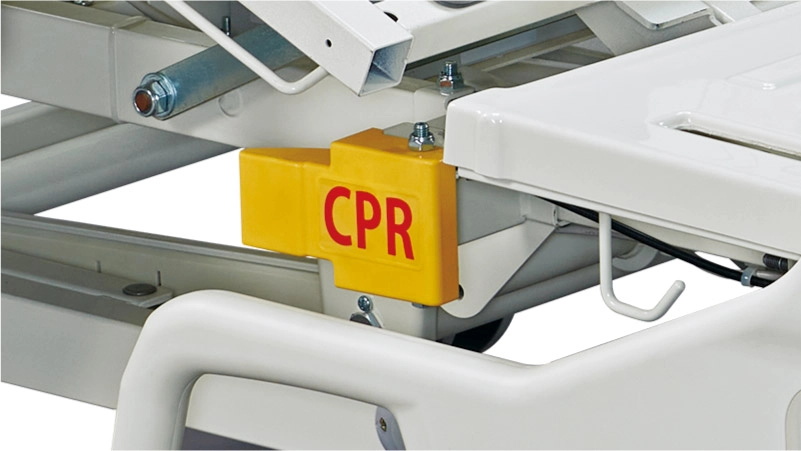

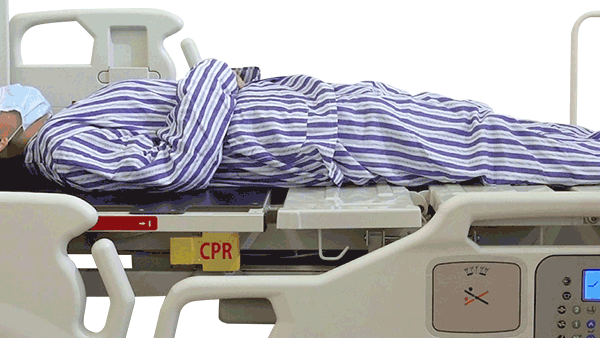

Backrest CPR Lever
Releasing CPR lever to the CPR position.

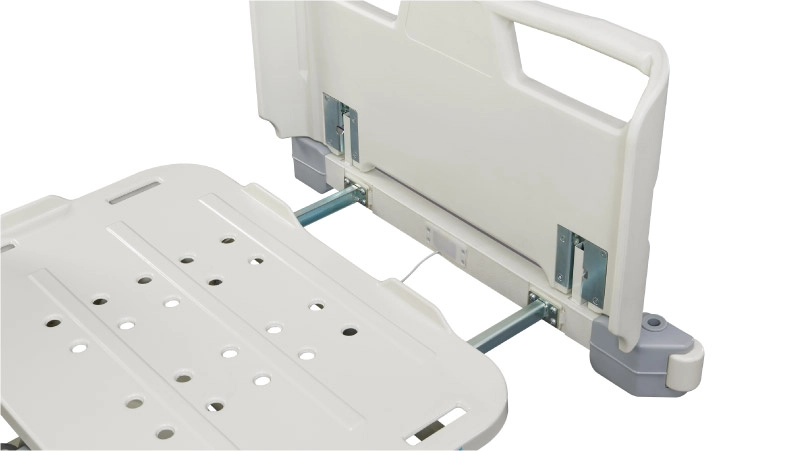

Bed Extension
The foot of the bed can be extended by 20 cm as needed.

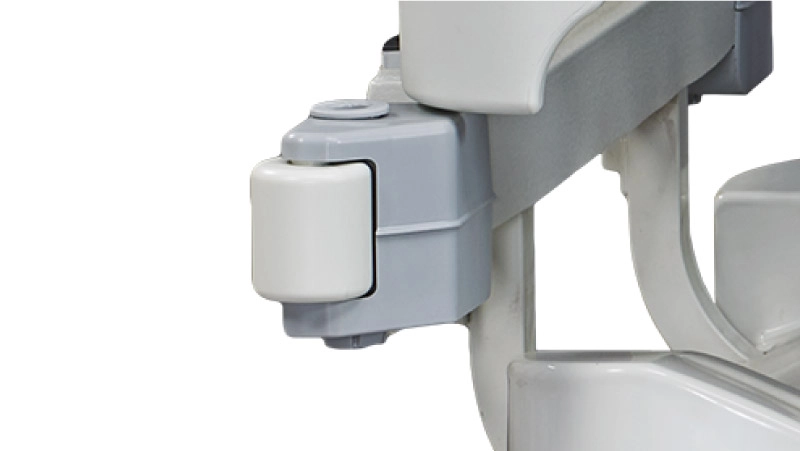

Bumpers
Avoid the damage caused when moving bed.

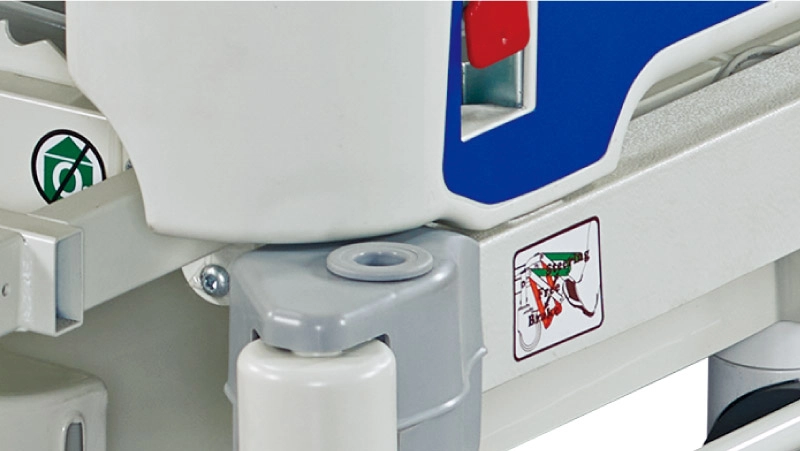

Dust-Proof Central Braking And Steering Module
Single operate by pedal lever to the central braking and steering module. Dust-Proof Lockable Caster prevent objects from outside to make the movement more safely.

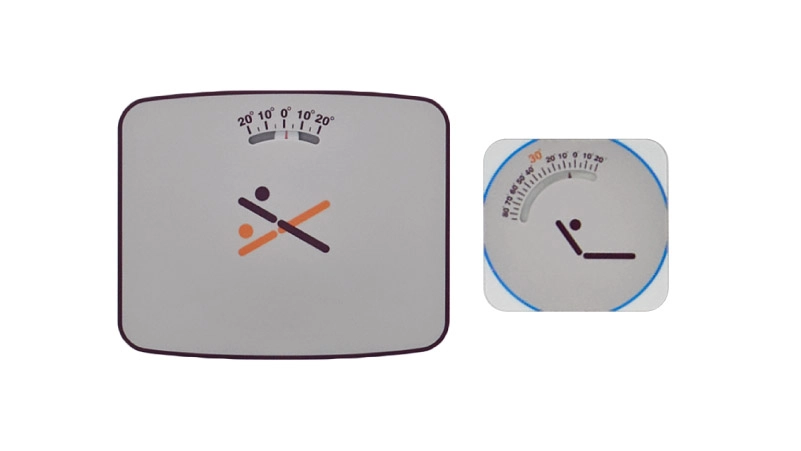

Backrest / Trendelenburg & Reverse Trendelenburg Angle Indicator
Both sides on siderails has indicators.
Detachable Head/Foot Board
ABS material. Quick release and install by using two safty buckles, the integrated molding handles in both sides gives a easy way to grip and move the bed.
Mattress Stoppers
Stoppers around the mattress platform to prevent mattress slip.
I.V. Pole Holes
The bed frame features IV pole sockets, allowing for flexible, multi-angle installation.

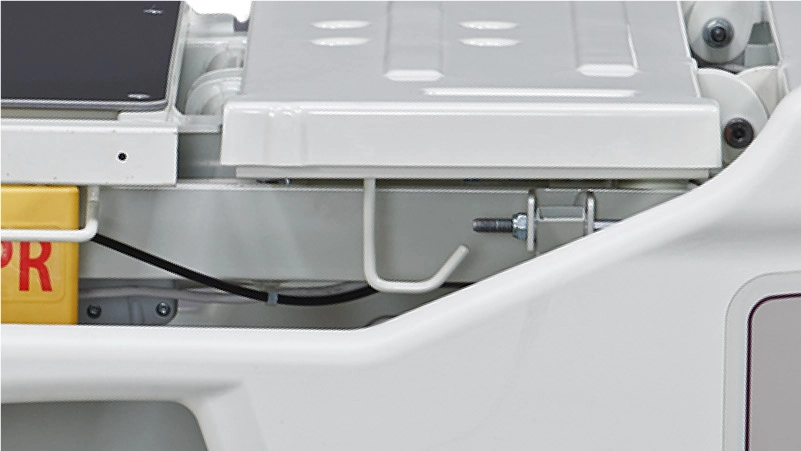

Drainage Bags Hanger
Drainage bag hooks are equipped on the side of the bed, allowing for the secure attachment and hanging of drainage bags to keep the surrounding area clean and organized.
Restraint Belt Openings
The bed base is equipped with restraint belt openings, allowing caregivers to securely fasten restraints when necessary to enhance patient safety.

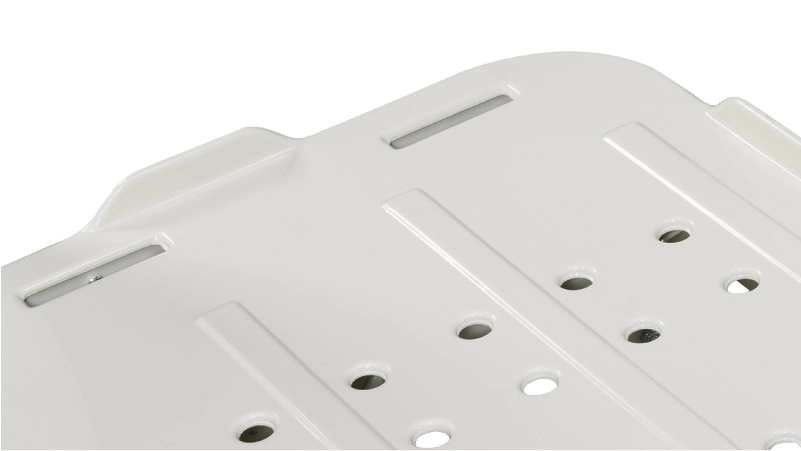

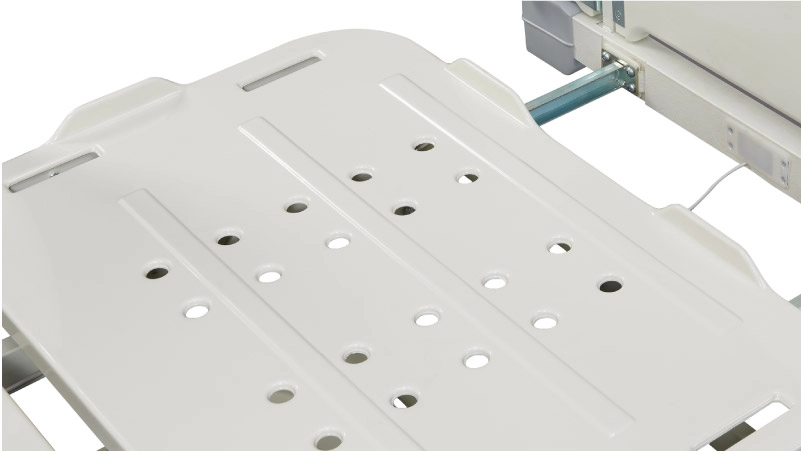

Bed Frame
Head/Foot Board Is Made Of ABS. Also Holes For Ventilate.

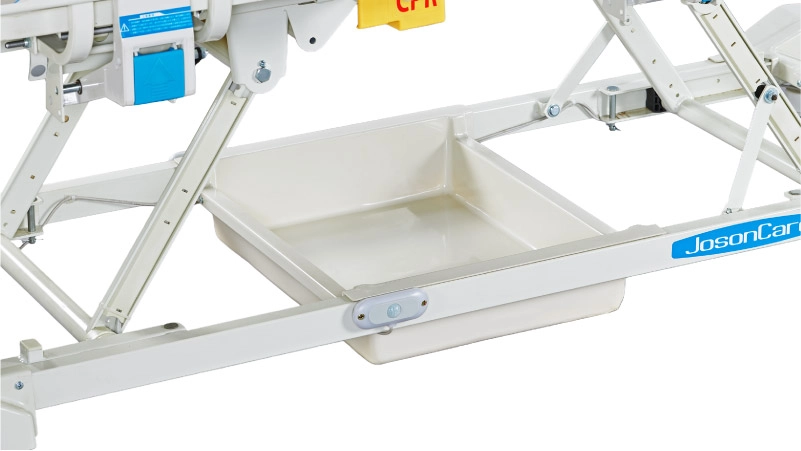

Storage Box
Integrated storage space is conveniently designed at the bottom of the bed frame, allowing patients or caregivers to store daily necessities or medical supplies.

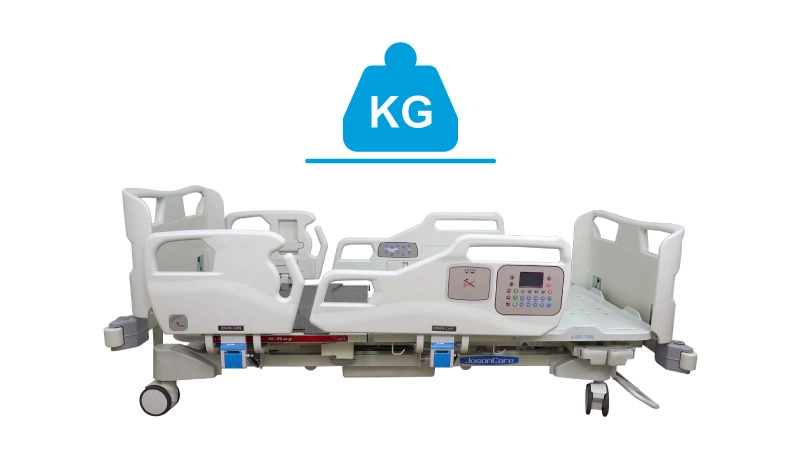

Safe Working Load
The bed frame has been professionally tested and has a maximum safe load of 230 kg, ensuring structural stability and user safety.

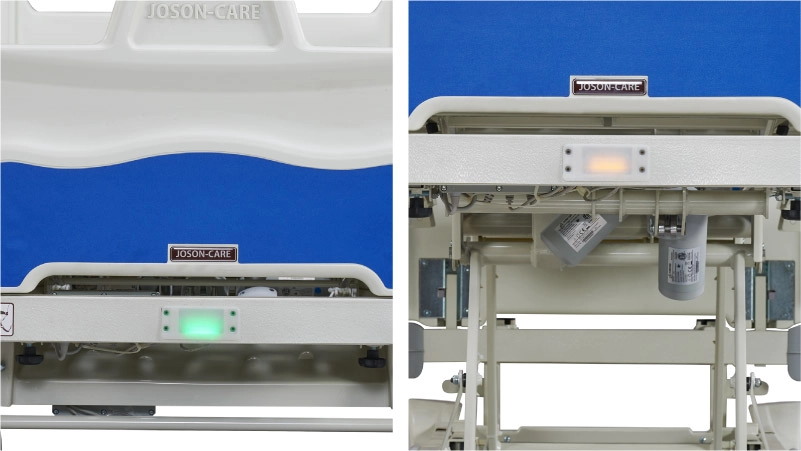

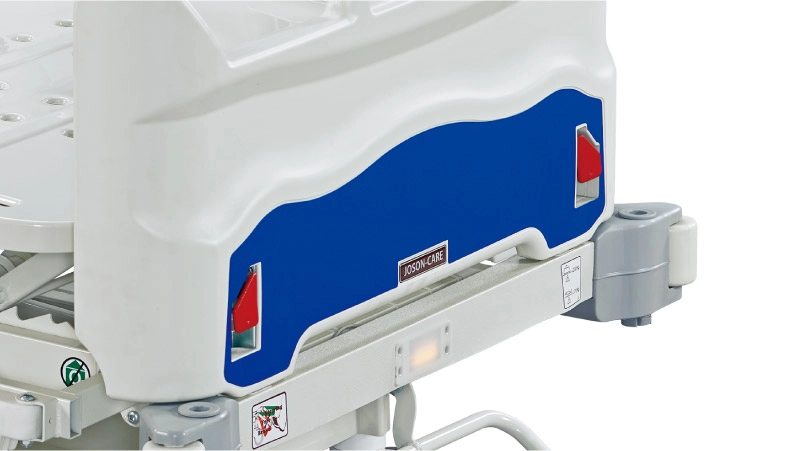

Height Caution Indicator
An indicator light is located at the foot of the bed. It illuminates in different colors as the bed's height is adjusted, clearly alerting both patients and medical staff.

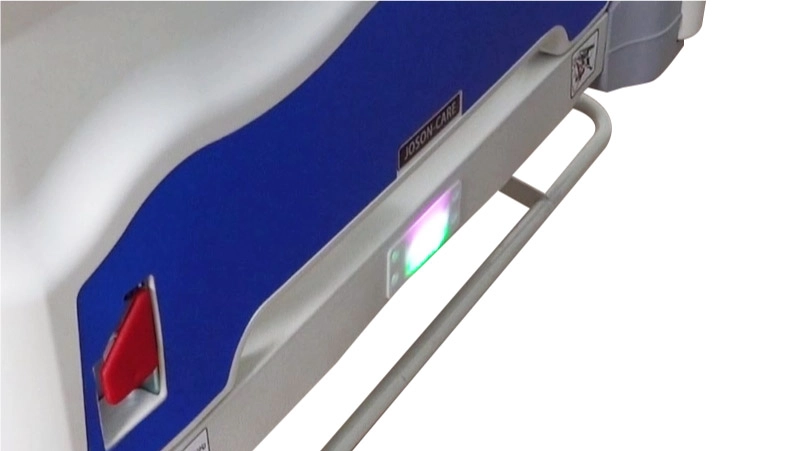

Brake Caution Indicator
A brake caution indicator is positioned at the foot of the bed, providing a warning signal when the bed is being moved.

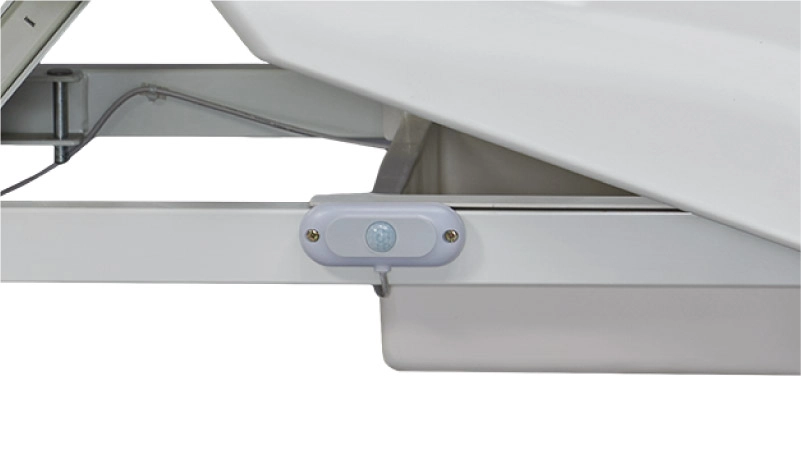

Night Light
Soft night lights are installed on both sides of the bed to facilitate movement at night and enhance safety when getting in or out of the bed.
Backup Battery
Provide bed electricity to controll when power failure or remove the plug.

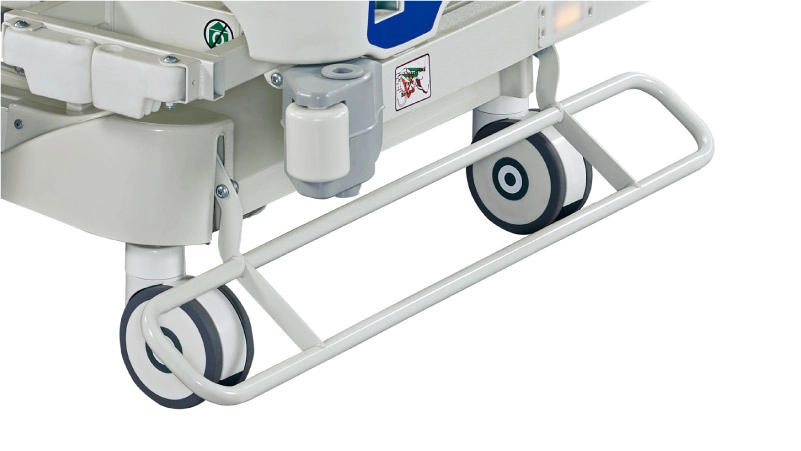

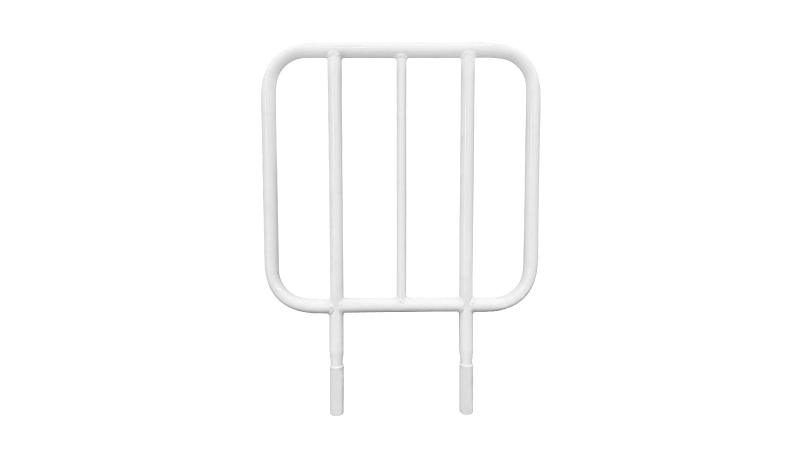

Back up (Optional)
The foot-end “back up” side rail can be quickly installed when needed, providing additional protection to prevent patients from accidentally sliding off during movement or repositioning. This design is especially suitable for patients in unstable condition or requiring extra care, while allowing caregivers to operate with both safety and convenience in mind.
Mattress (Optional)
L 1900 × W 890 × H 100 mm
Choose from a standard or antibacterial care mattress, both made with high-density flame-retardant foam. Available in different surface designs (e.g., corrugated, flat, wrinkle) and certified non-toxic (RoHS) and flame-retardant (BS-7177 & CA-117).
-

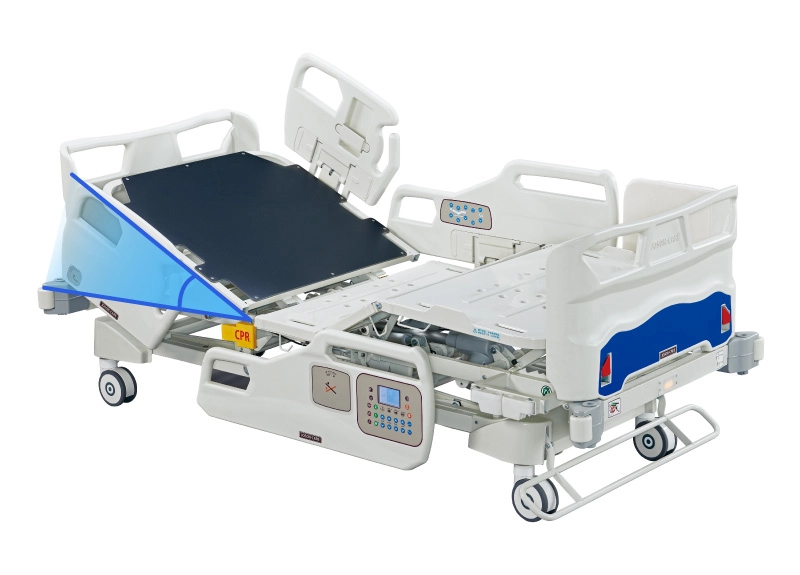

Head Elevation
0 ~ 75°
Knee Elevation
0 ~ 30°

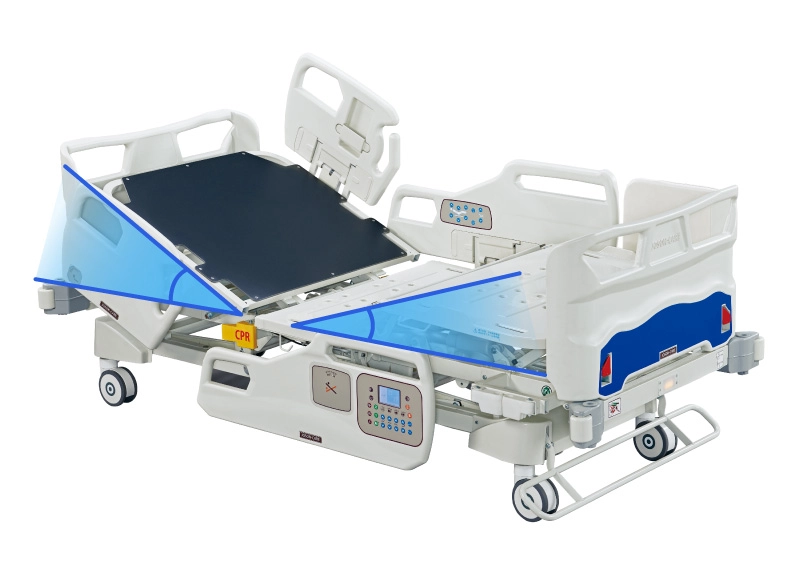

Auto-chair
A single button simultaneously adjusts the backrest angle from 0° to 75° and the knee angle from 0° to 30°.
Bed Elevation
5" Castor：455~755mm; 6" Castor：410~810mm. Bed elevation 40cm.

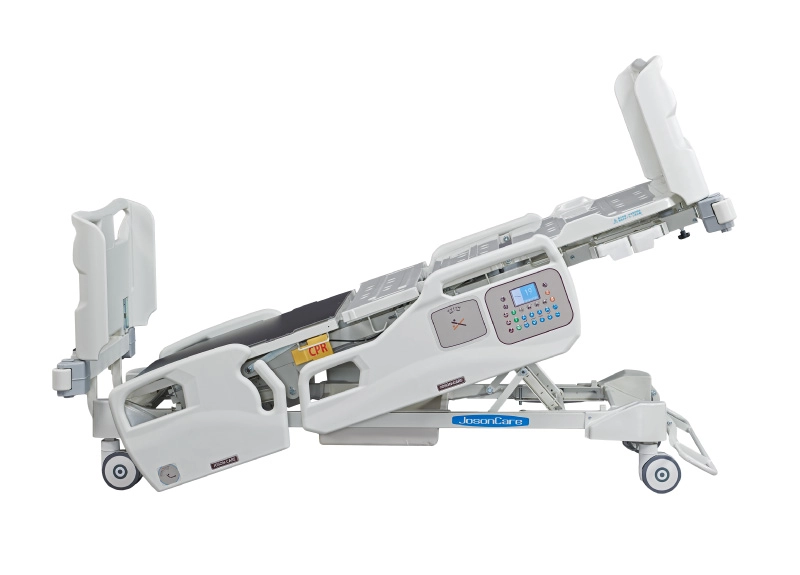

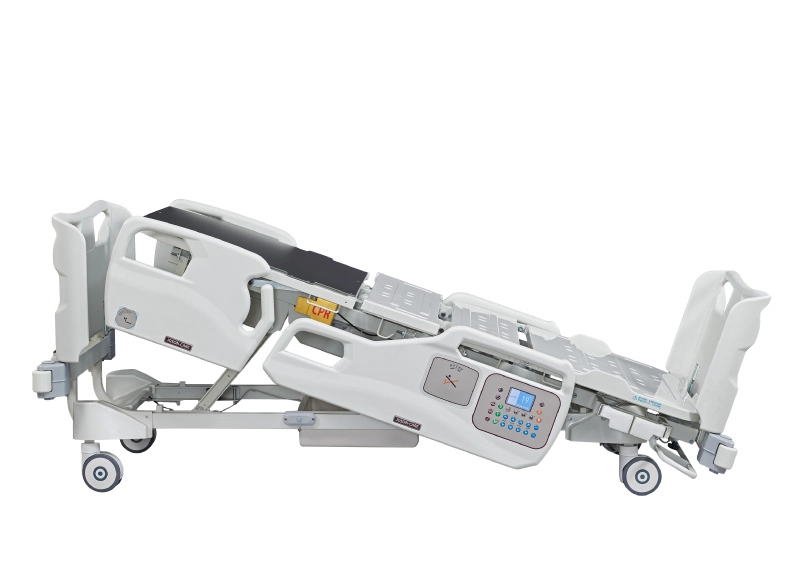

Trendelenburg / Reverse Trendelenburg
± 0 ~ 18°

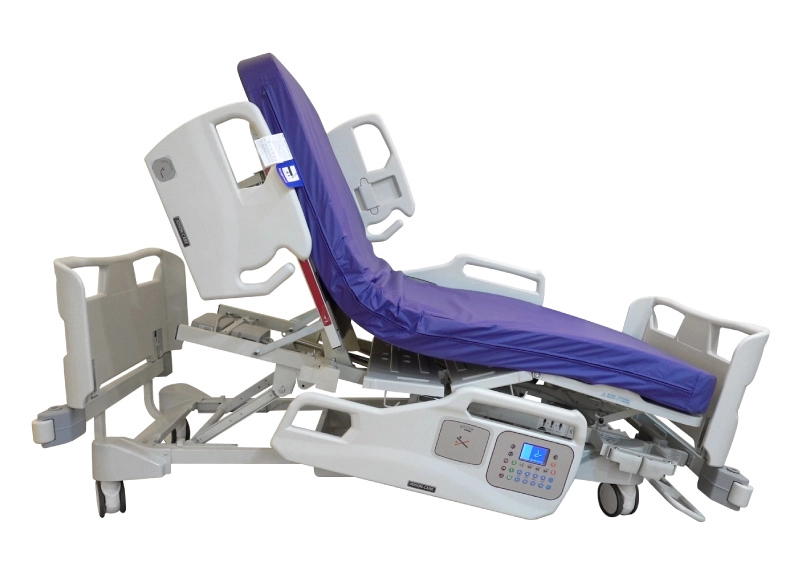

Chair Position
The "Chair Position" button on the attendant control panel allows for one-touch adjustment to the most comfortable sitting position with a long press. -
Make it easier for patients to operate the control panel.One Button Chair Positioning.Underbed Lighting for Falls Prevention.

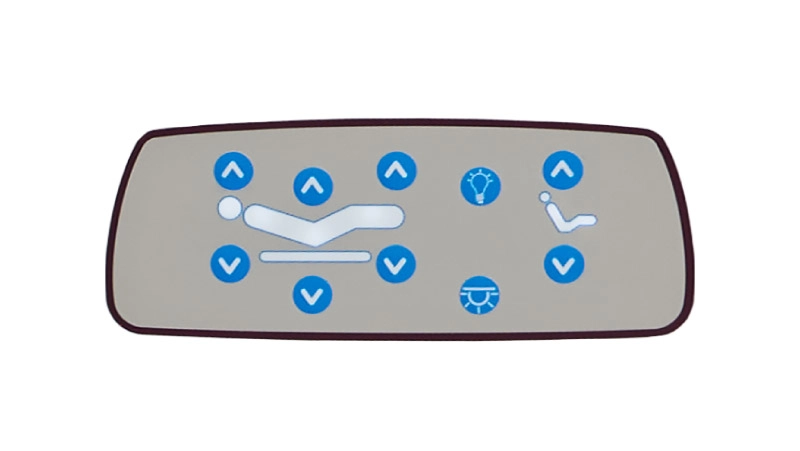

Inner Siderail Controls

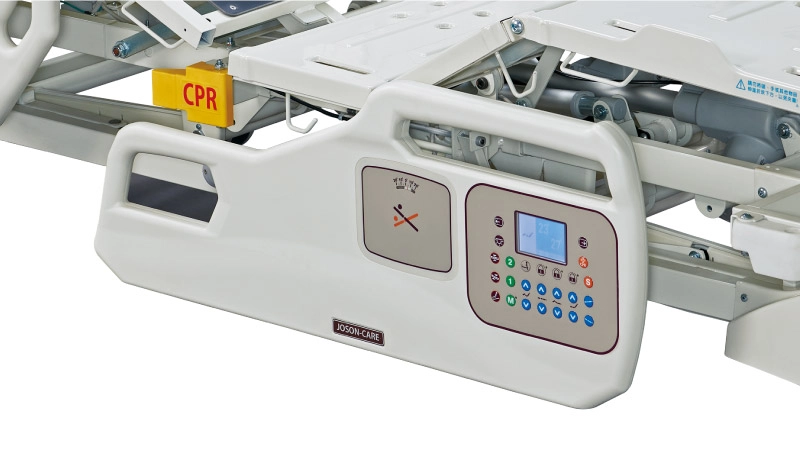

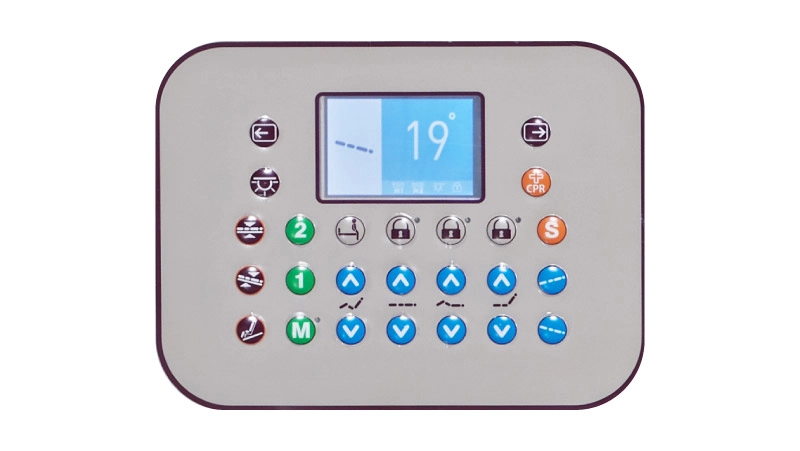

Outer Siderail LCD Controls
Full Range of Performance Enhancing Accessories of Siderails LCD Panel.
Remote Control (Optional)
Attendant Remote Controller, another choice for caregiver to operate.
-
Safety Standards
Certified to IEC 60601-1-2 for electromagnetic compatibility and IEC 60601-2-52 for medical bed safety. These certifications ensure the product's design and manufacturing meet strict international standards.
-

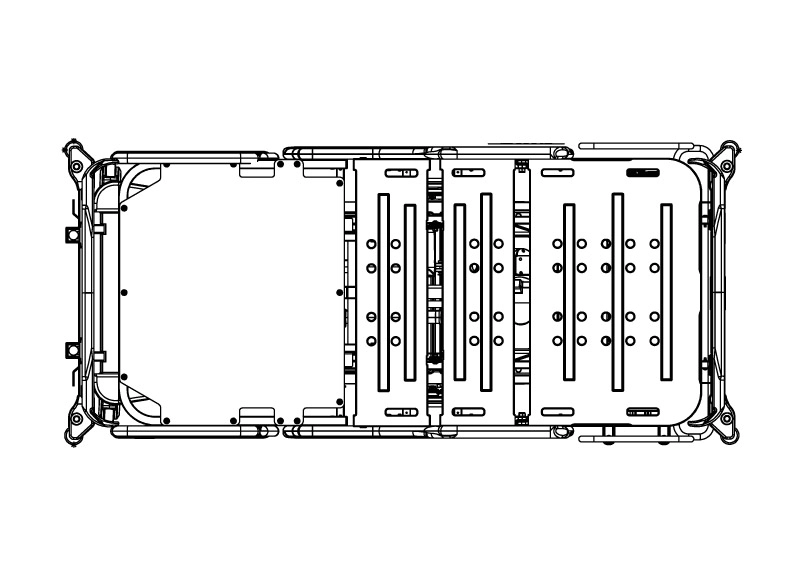

Top View

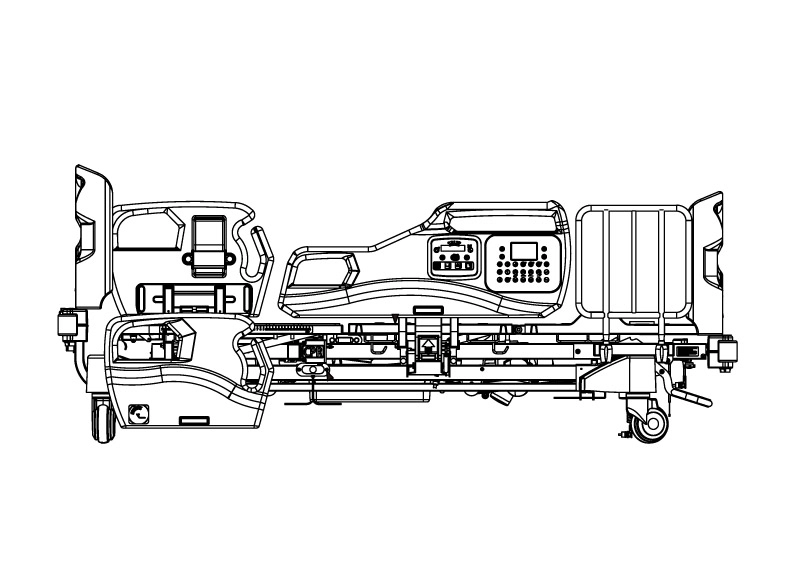

Side View

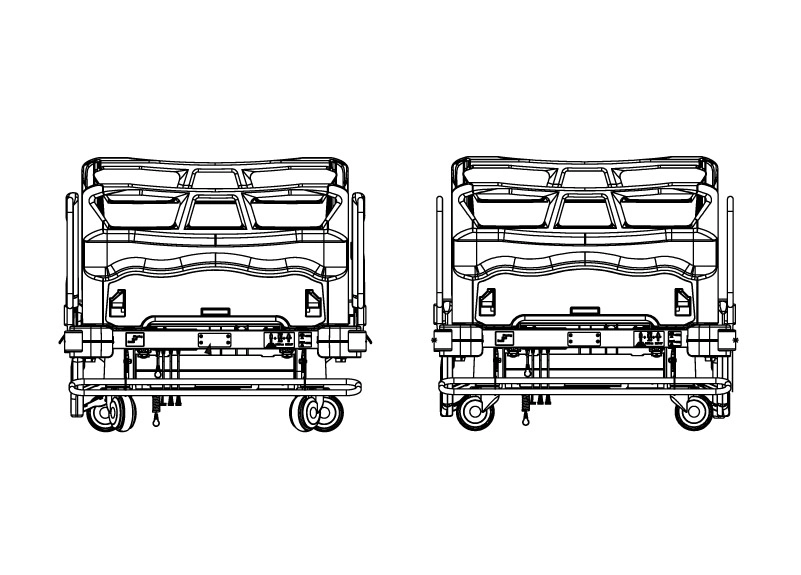

Foot-end View
Overall bed length 2220mm Overall bed width 990mm (siderails up) ; 958mm (siderails down) Overall mattress base length 1925mm Overall mattress base width 885mm Overall bed height 385 ~ 785mm (5″) ±20mm tolerance in all dimensions｜±30mm in siderail width｜+5° -0° tolerance in angle degree
Actuator
Equipped with 4 motors, the drive voltage is DC 24V, providing stable and efficient driving performance.
Volts & Frequency
Supports AC 100-240V and 50/60Hz, making it compatible with various power environments for flexible and convenient operation.
Actuator/Control Box
The electronic control system has an IP66 waterproof rating, effectively resisting moisture and dust to ensure long-term, stable operation.
-
Features
Shear Stress Bi-directional Release
The hip and back boards decline to minimize shear stress and ease pressure on the back and abdomen.Vertical Slide Rail
Made of FRP material. The side rail can be quickly dropped down and lifted up.Safety Design
The safety design to ensure patient couldn't control siderail from inner side.Backrest X-Ray Module
Allowing examination without patient mobilization.Backrest CPR Lever
Releasing CPR lever to the CPR position.Bed Extension
The foot of the bed can be extended by 20 cm as needed.Bumpers
Avoid the damage caused when moving bed.Dust-Proof Central Braking And Steering Module
Single operate by pedal lever to the central braking and steering module. Dust-Proof Lockable Caster prevent objects from outside to make the movement more safely.Backrest / Trendelenburg & Reverse Trendelenburg Angle Indicator
Both sides on siderails has indicators.Detachable Head/Foot Board
ABS material. Quick release and install by using two safty buckles, the integrated molding handles in both sides gives a easy way to grip and move the bed.Mattress Stoppers
Stoppers around the mattress platform to prevent mattress slip.I.V. Pole Holes
The bed frame features IV pole sockets, allowing for flexible, multi-angle installation.Drainage Bags Hanger
Drainage bag hooks are equipped on the side of the bed, allowing for the secure attachment and hanging of drainage bags to keep the surrounding area clean and organized.Restraint Belt Openings
The bed base is equipped with restraint belt openings, allowing caregivers to securely fasten restraints when necessary to enhance patient safety.Bed Frame
Head/Foot Board Is Made Of ABS. Also Holes For Ventilate.Storage Box
Integrated storage space is conveniently designed at the bottom of the bed frame, allowing patients or caregivers to store daily necessities or medical supplies.Safe Working Load
The bed frame has been professionally tested and has a maximum safe load of 230 kg, ensuring structural stability and user safety.Height Caution Indicator
An indicator light is located at the foot of the bed. It illuminates in different colors as the bed's height is adjusted, clearly alerting both patients and medical staff.Brake Caution Indicator
A brake caution indicator is positioned at the foot of the bed, providing a warning signal when the bed is being moved.Night Light
Soft night lights are installed on both sides of the bed to facilitate movement at night and enhance safety when getting in or out of the bed.Backup Battery
Provide bed electricity to controll when power failure or remove the plug.Back up (Optional)
The foot-end “back up” side rail can be quickly installed when needed, providing additional protection to prevent patients from accidentally sliding off during movement or repositioning. This design is especially suitable for patients in unstable condition or requiring extra care, while allowing caregivers to operate with both safety and convenience in mind.Mattress (Optional)
L 1900 × W 890 × H 100 mm
Choose from a standard or antibacterial care mattress, both made with high-density flame-retardant foam. Available in different surface designs (e.g., corrugated, flat, wrinkle) and certified non-toxic (RoHS) and flame-retardant (BS-7177 & CA-117). -
Functions
Head Elevation
0 ~ 75°Knee Elevation
0 ~ 30°Auto-chair
A single button simultaneously adjusts the backrest angle from 0° to 75° and the knee angle from 0° to 30°.Bed Elevation
5" Castor：455~755mm; 6" Castor：410~810mm. Bed elevation 40cm.Trendelenburg / Reverse Trendelenburg
± 0 ~ 18°Chair Position
The "Chair Position" button on the attendant control panel allows for one-touch adjustment to the most comfortable sitting position with a long press. -
Control
Make it easier for patients to operate the control panel.One Button Chair Positioning.Underbed Lighting for Falls Prevention.
Inner Siderail ControlsOuter Siderail LCD Controls
Full Range of Performance Enhancing Accessories of Siderails LCD Panel.Remote Control (Optional)
Attendant Remote Controller, another choice for caregiver to operate. -
Standards
Safety Standards
Certified to IEC 60601-1-2 for electromagnetic compatibility and IEC 60601-2-52 for medical bed safety. These certifications ensure the product's design and manufacturing meet strict international standards. -
Dimensions
Top View
Side View
Foot-end View
Overall bed length 2220mm Overall bed width 990mm (siderails up) ; 958mm (siderails down) Overall mattress base length 1925mm Overall mattress base width 885mm Overall bed height 385 ~ 785mm (5″) ±20mm tolerance in all dimensions｜±30mm in siderail width｜+5° -0° tolerance in angle degree
Actuator
Equipped with 4 motors, the drive voltage is DC 24V, providing stable and efficient driving performance.Volts & Frequency
Supports AC 100-240V and 50/60Hz, making it compatible with various power environments for flexible and convenient operation.Actuator/Control Box
The electronic control system has an IP66 waterproof rating, effectively resisting moisture and dust to ensure long-term, stable operation.
Some features or accessories are optional. For more information, please contact our sales team.
